Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

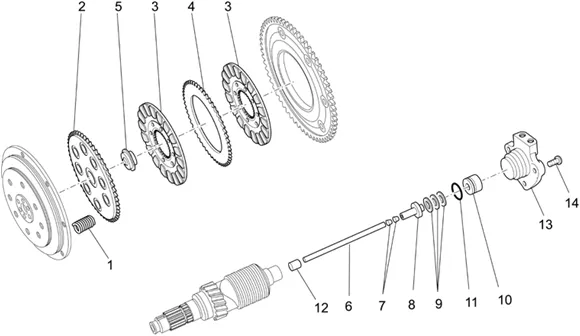

Moteur : 34.48 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_34.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/4/5/9/img/128459.jpg)
1 |
SPRING PLATEAU D'EMBRAYAGE OEM PIAGGIO 850-1200 NORGE, GRISO, BREVA, 1100 V11, 1200 SPORT, 840 BELLAGIO-GU04084100 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/5/img/129165.jpg)
1 |
SPRING CLUTCH OEM PIAGGIO MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO-GU13084100 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/7/img/130537.jpg)
2 |
DISC CLUTCH OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, 850-1200 NORGE, 940 BELAGIO, 1100-1200 SPORT, V10, V11, 1000 DAYTONA-GU30082900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/4/9/9/img/125499.jpg)
3 |
DISC CLUTCH OEM PIAGGIO MOTO-GUZZI 1000-1100 SPORT, CALIFORNIA, QUOTA, 1100 GRISO, V11, BREVA, 850 BREVA, NORGE, 1000 V10, LE-MANS, 940 BELLAGIO-GU050844305 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/1/8/img/129118.jpg)
4 |
DISC CLUTCH INTERCALAIRE OEM PIAGGIO 850-1100-1200 BREVA, 850-1200 NORGE, 940 BELAGIO, 1100-1200 SPORT, V10, V11, 1000 DAYTONA-GU12082300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/4/5/8/img/128458.jpg)
5 |
BUTEE CLUTCH OEM PIAGGIO MOTO-GUZZI 850-1100 BREVA, GRISO, 850-1200 NORGE, 1100 V11 1999 >, 840 BELLAGIO 2007 >, 1200 SPORT 2006 >-GU04082800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/6/8/img/128568.jpg)
6 |
CLUTCH PUSH ROD "PIAGGIO GENUINE PART" MOTO-GUZZI BELLAGIO, SPORT, BREVA, GRISO, NORGE -GU05085730 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/6/img/129196.jpg)
7 |
BUSH CLUTCH OEM MOTO-GUZZI COMMON A LA RANGE-GU14085900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/0/7/img/125107.jpg)
8 |
BODY INNER DE ROD CLUTCH OEM PIAGGIO MOTO-GUZZI 1100-1200 SPORT, BREVA, GRISO, 940 BELLAGIO, 750 V7, BREVA, NEVADA, 1100 CALIFORNIA, 1000 V10, 1200 STELVIO-GU14086000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
9 |
PALLIER DE POUSSEE D'EMBRAYAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000376 More informationQuantity required : 1 |
||||||
10 |
GU04086100 - CYLINDRE COMMANDE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
11 |
O-RING (17, 13X2, 62) OEM PIAGGIO COMMON A LA RANGE-GU90706170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/5/3/img/128653.jpg)
12 |
GU05217630-BUSH More informationQuantity required : 1 |
||||||
|
13 |
GU05086330 - CYLINDRE COMM.EMBR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
