Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

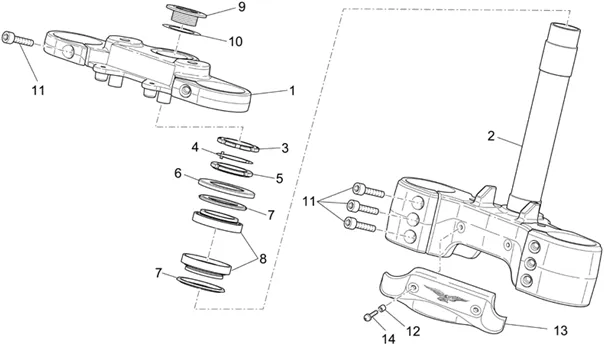

Chassis : 33.06 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.06.PNG)
1 |
GU06493100-PLATE SUP. FORK More informationQuantity required : 1 |
||||||
|
2 |
LOWER FORK YOKE"PIAGGIO GENUINE PARTS" MOTO GUZZI GRISO 1200 2007>2017 -GU06494000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
3 |
NUT DE COLONNE DE STEERING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8123643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
4 |
WASHER DE SECURITE DE STEERING OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-AP8121207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
5 |
NUT DE STEERING OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
6 |
WASHER PROTECTOR-POUSSIERE OEM APRILIA/MOTOGUZZI COMMON A LA RANGE-AP8123644 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
7 |
ANNEAU PROTECTOR-POUSSIERE STEERING OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP8123641 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.jpg)
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
|
9 |
AP8121346-BUSH FX. PL. SUP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
10 |
WASHER FOR NUT TE DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8152384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
11 |
SCREW BTR (8X30) DOOR LUGGAGE OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO-GU98700430 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
12 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
||||||
|
13 |
GU05658431-PLA. FIX. TUBE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
14 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
