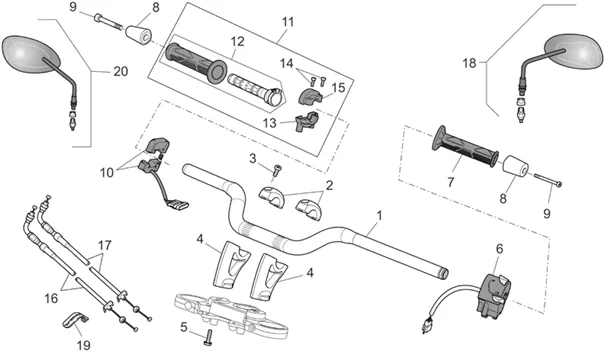

Chassis : 33.21 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.21.PNG)
1 |
GU06600300-HANDLEBAR More informationQuantity required : 1 |
||||||
|
2 |
GU06500600-CAVALIER SUP. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
3 |
SCREW BTR (8X30) DOOR LUGGAGE OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO-GU98700430 More informationQuantity required : 4 |
||||||
|
4 |
GU06500200-CAVALIER INF. More informationQuantity required : 2 |
||||||
|
5 |
AP8152325-SCREW FLANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/4/img/71624.jpg)
6 |
LEFT SWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 GRISO, 940 BELLAGIO/APRILIA 1000 TUONO -AP8127703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
7 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/5/img/68465.jpg)
8 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-673243 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/0/3/img/133003.jpg)
9 |
SCREW BTR HEAD FRAISEE (8X50) HANDLEBAR END GRISO OEM MOTOGUZZI-GU98250650 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/2/img/72852.jpg)
10 |
DEVIATEUR/CONTACTEUR FEUX RIGHT OEM PIAGGIO APRILIA 1000 RSV, TUONO, 900 SHIVER, DORSODURO/MOTO-GUZZI GRISO, BELLAGIO, BREVA, SPORT-B045021 More informationQuantity required : 1 |
||||||
|
11 |
GU05603331-CONTROL THROTTLE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/5/img/73415.jpg)
12 |
REVETEMENT DE GRIP RIGHT WITH SLEEVE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01603480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/2/img/71362.jpg)
13 |
CAVALIER FRONT CONTROL DE THROTTLE OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4/MOTO-GUZZI GRISO, BREVA, BELLAGIO-AP8118502 More informationQuantity required : 1 |
||||||
|
14 |
AP8118492-SCREW CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/3/img/71363.jpg)
15 |
HALF CLAMP (REAR) FOR THROTTLE HANDLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4/MOTO-GUZZI GRISO, BREVA, BELLAGIO -AP8118503 More informationQuantity required : 1 |
||||||
|
16 |
GU06117500-CABLE OUVERTURE THROTTLE More informationQuantity required : 1 |
||||||
|
17 |
GU06117800-CABLE LATCH THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/8/img/99968_20260415164519.jpg)
18 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 1 |
||||||
|
18 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
19 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 4 |
||||||
|
19 |
GU03609600-CLAMP L36 MM More informationQuantity required : 1 |
||||||
|
20 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 1 |
||||||
|
20 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 1 |
