Vehicle Exploded View - MOTO-GUZZI GRISO 850 Griso V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

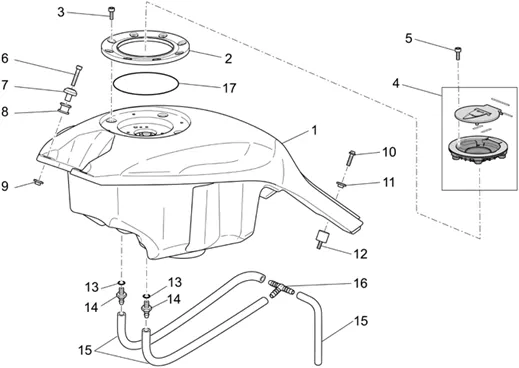

Chassis : 33.14 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.14.PNG)
1 |
GU06100200-TANK UNPAINTED More informationQuantity required : 1 |
||||||
|
1 |
GU06100204-TANK ESS. JAUNE More informationQuantity required : 1 |
||||||
|
2 |
GU06102300-EMBOUT FOR CAP More informationQuantity required : 1 |
||||||
|
3 |
GU98710215 - VIS M5X15 More informationQuantity required : 8 |
||||||
|
4 |
GU06103900-CAP TANK CARBURANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/7/img/133207.jpg)
5 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98692216 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
6 |
SCREW BTR (6X40) OEM PIAGGIO COMMON A LA RANGE-GU98680340 More informationQuantity required : 2 |
||||||
|
7 |
GU06107100-BUSH ATTACHE TANK More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
8 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
9 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
|
11 |
GU06704901-" BUSH EN " " T " " * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
12 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
13 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 2 |
||||||
|
14 |
GU30103730 - RACCORD More informationQuantity required : 2 |
||||||
|
15 |
896570-HOSE More informationQuantity required : 3 |
||||||
|
16 |
AP8104666-FITTING 3 VOIES More informationQuantity required : 1 |
||||||
|
17 |
977062-ANELLO OR 164, 69X3, 53 More informationQuantity required : 1 |
