Vehicle Exploded View - DERBI GPR 125 GPR RACING & R 125cc 2004-2006 E2 2ed DERBI

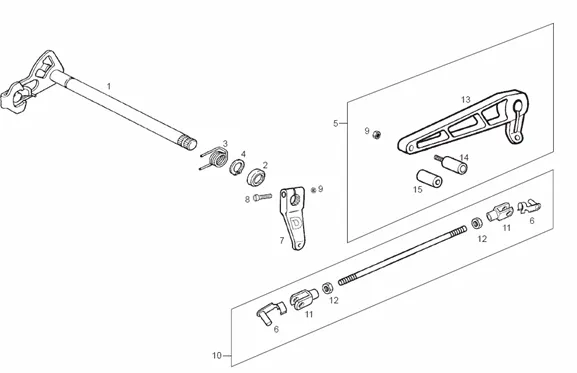

Tables : 27 LEVIER BOÎTE DE VITESSES
Levier boîte de vitesses
Search
00M12502003 - AXE SELECTEUR

1
P2R reference P2R reference 65068
Maker reference Maker reference 00M12502003

00M12502003 - AXE SELECTEUR

More information

Quantity required : 1

AP8520117 - 5305309

2
P2R reference P2R reference 72428
Maker reference Maker reference AP8520117

AP8520117 - 5305309

More information

Quantity required : 1

00M12502241 - RESSORT

3
P2R reference P2R reference 65269
Maker reference Maker reference 00M12502241

00M12502241 - RESSORT

More information

Quantity required : 1

00M12502311 - BRIDE

4
P2R reference P2R reference 65326
Maker reference Maker reference 00M12502311

00M12502311 - BRIDE

More information

Quantity required : 1

GEARBOX SELECTOR "PIAGGIO GENUINE PART" GILERA 125 SC -00H02707421-

5
P2R reference P2R reference 64730
Maker reference Maker reference 00H02707421

GEARBOX SELECTOR "PIAGGIO GENUINE PART" GILERA 125 SC -00H02707421-

More information

Quantity required : 1

00H02700241 - FERME LEVIER CHANG.

6
P2R reference P2R reference 64721
Maker reference Maker reference 00H02700241

00H02700241 - FERME LEVIER CHANG.

More information

Quantity required : 1

00H02703581 - DOUILLE

7
P2R reference P2R reference 64728
Maker reference Maker reference 00H02703581

00H02703581 - DOUILLE

More information

Quantity required : 1

00004062200 - VIS TETE ALLEN 6M100X22D912

8
P2R reference P2R reference 63647
Maker reference Maker reference 000040622005

00004062200-SCREW HEAD ALLEN 6M100X22D912

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

9
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

More information

Quantity required : 1

00H02701471 - TIGE DE AXE SELECTEUR

10
P2R reference P2R reference 64724
Maker reference Maker reference 00H02701471

00H02701471 - TIGE DE AXE SELECTEUR

More information

Quantity required : 1

00067061201 - FOURCHETTE DE AXE SELECTEUR

11
P2R reference P2R reference 63748
Maker reference Maker reference 000670612015

00067061201-FOURCHETTE DE SPINDLE SELECTEUR

More information

Quantity required : 1

NUT FLANGE (6X1. 00) OEM PIAGGIO COMMON A LA RANGE-00000021060

12
P2R reference P2R reference 63586
Maker reference Maker reference 000000210605

NUT FLANGE (6X1. 00) OEM PIAGGIO COMMON A LA RANGE-00000021060

More information

Quantity required : 1

00H02705011 - LEVIER CHANGE

13
P2R reference P2R reference 195518
Maker reference Maker reference 00H02705011

00H02705011 - LEVIER CHANGE

More information

Quantity required : 1

00H02702811 - PART SELECT.CHANGE

14
P2R reference P2R reference 64726
Maker reference Maker reference 00H02702811

00H02702811-PART SELECT. CHANGE

More information

Quantity required : 1

00H02701271 - CAOUTCHOUC DE SELECTEUR

15
P2R reference P2R reference 64723
Maker reference Maker reference 00H02701271

00H02701271 - CAOUTCHOUC DE SELECTEUR

More information

Quantity required : 1
