Vehicle Exploded View - DERBI GPR 125 GPR RACING & R 125cc 2004-2006 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

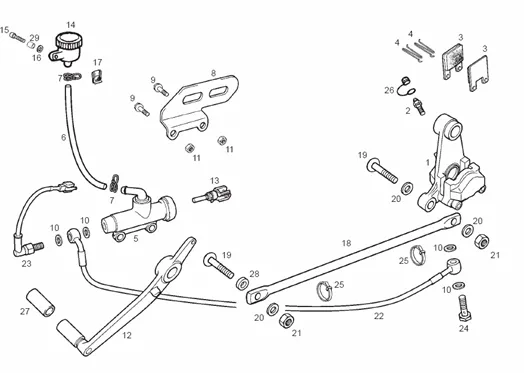

Tables : 12 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1156/GPR_RACING_&_R_125cc_2004-2006_E2_2ed_12.png)
1 |
00H01107581-CALIPER BRAKE ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/3/0/img/64930.jpg)
2 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO APRILIA 50 RS 2006 > 2010, 125 SC-00H04700121 More informationQuantity required : 1 |
||||||
|
3 |
00H01303551-BRAKE PAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
4 |
SPRING BRAKE PAD OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 > 2010-00H01301831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/1/0/img/64410.jpg)
5 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01105181- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/9/8/img/64398.jpg)
6 |
00H01101211 - FLEXIBLE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/9/img/64809.jpg)
7 |
CLAMP HOSE (8X10) BOCAL OF BRAKE OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 </APRILIA SX, RX, RS-00H03700131 More informationQuantity required : 1 |
||||||
|
8 |
00H01104701 - PROTECTION POMPE FREIN More informationQuantity required : 1 |
||||||
|
9 |
00G01504701 - BOULON SER. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
10 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
12 |
00H01100541 - S/ENSEMBLE PDALE FREIN More informationQuantity required : 1 |
||||||
|
13 |
00H01104611 - TIGE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/3/img/63873.jpg)
14 |
TANK/BOCAL OF BRAKE REAR OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2006, RS 2006 > 2010-00D01100201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/5/img/63615.jpg)
15 |
SCREW FLANGE BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-00002053051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/0/img/64840.jpg)
16 |
WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
17 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
18 |
00H01301311-TIRANT BRAKE * More informationQuantity required : 1 |
||||||
|
19 |
00G06800211 - VIS FIXATION BIELLE PRINCIPALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
20 |
WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
21 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
22 |
HOSE/FLEXIBLE/HOSE OF BRAKE OEM PIAGGIO GILERA 125 SC-00H01114081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/9/3/img/64393.jpg)
23 |
00H01100221-INTERRUPTEUR COMMANDEMENT STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
24 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
|
25 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
26 |
00H01100631 - BOUCHON More informationQuantity required : 1 |
||||||
|
27 |
00H02701271 - CAOUTCHOUC DE SELECTEUR More informationQuantity required : 1 |
||||||
|
28 |
00H01310181 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/6/img/64376.jpg)
29 |
SPACER OF REAR LIGHT OU BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT 2006/DERBI SENDA 2000 > 2010/APRILIA RS 2006 > 2010-00H01002821 More informationQuantity required : 1 |
