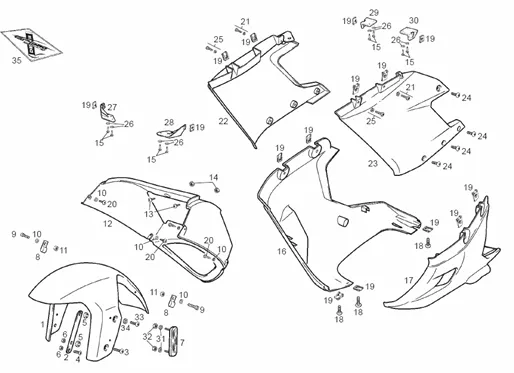

Vehicle Exploded View - DERBI GPR 125 GPR RACING & R 125cc 2004-2006 E2 2ed

	P2R reference	195467
	Maker reference	00H007200285

00H007200285 - GARDE-BOUE AVANT

	P2R reference	70311
	Maker reference	867258

BRACKET/BRACKET DE GUARD-MUD FRONT OEM PIAGGIO APRILIA 50-125 RS, TUONO-867258

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	63665
	Maker reference	000080620005

00008062000-BOLT BOMBEE ALLEN 6M100X20

	P2R reference	64291
	Maker reference	00H00700321

00H00700321 - DOUILLE

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	71569
	Maker reference	AP8124719

CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	63661
	Maker reference	000080512005

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-00008051200

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64609
	Maker reference	00H01801171

00H01801171 - COUVRE GARDE-BOUE AVANT

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63579
	Maker reference	000000114165

00000011416-SCREW TARAUD T. RONDE CROIX 4, 8X1

	P2R reference	195468
	Maker reference	00H015192315

00H015192315 - COUVERCLE INF. DR.

	P2R reference	195469
	Maker reference	00H015192335

00H015192335 - COUVERCLE INF. DR.

	P2R reference	195470
	Maker reference	00H015192345

00H015192345 - R-LATERAL INF.DR.RJ.FL.GPR 125CC

	P2R reference	195471
	Maker reference	00H049186415

00H049186415 - COUVERCLE INF. GAU.

	P2R reference	195472
	Maker reference	00H049186435

00H049186435 - COUVERCLE INF. GAU.

	P2R reference	195473
	Maker reference	00H049186445

00H049186445 - R-LATERAL INF.IZ.RJ.FL.GPR 125CC

	P2R reference	65033
	Maker reference	00H06300861

SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63676
	Maker reference	000110314015

00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H

	P2R reference	63678
	Maker reference	000110325015

SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501

	P2R reference	195474
	Maker reference	00H015042415

00H015042415 - COUVERCLE SUP. DR.

	P2R reference	193510
	Maker reference	00H015042445

00H015042445 - R-TAPA LAT.SUP.DR.RJO.FLU.GPR 05

	P2R reference	195475
	Maker reference	00H015042455

00H015042455 - COUVERCLE SUP. DR.

	P2R reference	195476
	Maker reference	00H015042915

00H015042915 - COUVERCLE SUP. GA.

	P2R reference	193512
	Maker reference	00H015042945

00H015042945 - R-TAPA LAT.SUP.IZ RJO.FLU.GPR 05

	P2R reference	195477
	Maker reference	00H015042955

00H015042955 - COUVERCLE SUP. GA.

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	64151
	Maker reference	00G06800021

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021

	P2R reference	63725
	Maker reference	000311050005

00031105000-WASHER PLATE M5 DIN125

	P2R reference	64929
	Maker reference	00H04613841

00H04613841-COVER FRONTAL DR.

	P2R reference	64548
	Maker reference	00H01504261

00H01504261-COVER FRONTAL GA.

	P2R reference	64673
	Maker reference	00H02203461

00H02203461 - COUVERCLE POST. DR.

	P2R reference	65013
	Maker reference	00H05904521

00H05904521-COVER POST. GA.

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	195478
	Maker reference	00H05162651

00H05162651 - JEU ADHESIF

	P2R reference	195479
	Maker reference	00H05162652

00H05162652 - JEU ADHESIF

	P2R reference	195480
	Maker reference	00H05172651

00H05172651-R-JUEGO CALC. GPR125CC 5 RJ FL
