Vehicle Exploded View - DERBI GPR 125 GPR RACING & R 125cc 2004-2006 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

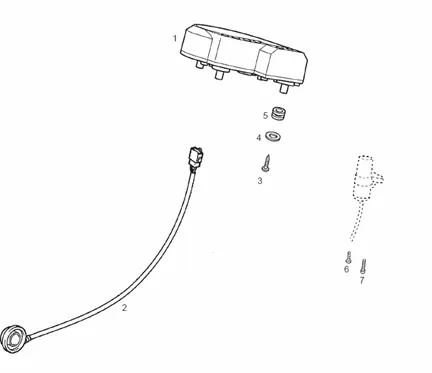

Tables : 13 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1156/GPR_RACING_&_R_125cc_2004-2006_E2_2ed_13.png)
1 |
00H04327031 - BOITIER TABLEAU BORD (KM/H) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/7/img/70887.jpg)
2 |
SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 DRD, GPR 2005 > 2011/APRILIA 50 RX 2006 > 2017, SX 2006 > 2017, RS 2006 > 2019-898626 More informationQuantity required : 1 |
||||||
|
3 |
00011941300-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
4 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
5 |
00H01602941-RUBBER GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
6 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
