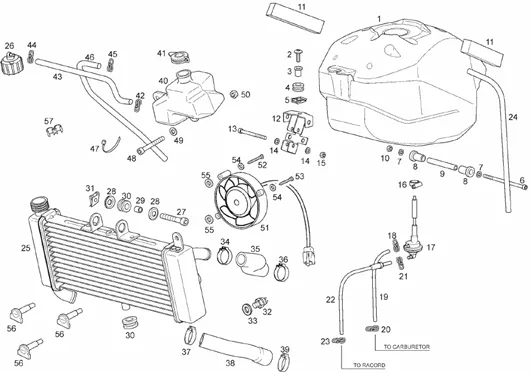

Vehicle Exploded View - DERBI GPR 125 2ver 4T E3 2009-2010 (EMEA)

	P2R reference	193127
	Maker reference	865630

865630 - RESERVOIR ESSENCE

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	189033
	Maker reference	864109

864109-BUSH

	P2R reference	64248
	Maker reference	00H00403581

RUBBER OEM PIAGGIO COMMON A LA RANGE-00H00403581

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	193128
	Maker reference	866169

866169-TOR. ALL6MX100X100 DIN912 ZNB

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	193129
	Maker reference	866500

866500-BUSH ATTACHE TANK

	P2R reference	193130
	Maker reference	866164

866164-SPACER TANK

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	193131
	Maker reference	866494

866494-PROTECTOR TANK

	P2R reference	193132
	Maker reference	865953

865953-CALIPER BRACKET TANK

	P2R reference	63572
	Maker reference	000000046305

00000004630-SCREW A HEAD ALLEN 6M100X30.

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	70033
	Maker reference	863699

FUEL TAP "PIAGGIO GENUINE PART" DERBI 125 GPR -863699

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	194888
	Maker reference	CM200110

CM200110-TUBO GASOLINA L470

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501

	P2R reference	195429
	Maker reference	866436

866436 - CTO.FILTRO DEPRES.GPR125 09

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501

	P2R reference	193134
	Maker reference	CM200120

CM200120 - TUBO GASOLINA D10X6X1060

	P2R reference	195430
	Maker reference	865653

865653-CTO. RADIADOR GPR125 09

	P2R reference	69848
	Maker reference	861299

861299-CTO. TAPON RADIADOR SM 80 *

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	67310
	Maker reference	584715

SONDE DE TEMPERATURE WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-584715

	P2R reference	154595
	Maker reference	864808

864808-GASKET

	P2R reference	64830
	Maker reference	00H03800091

00H03800091 - COLLIER

	P2R reference	70135
	Maker reference	865654

865654-TUBO CULATA-RADIADOR GPR125 09

	P2R reference	64830
	Maker reference	00H03800091

00H03800091 - COLLIER

	P2R reference	64830
	Maker reference	00H03800091

00H03800091 - COLLIER

	P2R reference	70136
	Maker reference	865655

HOSE RADIATOR A PUMP OEM PIAGGIO 125 RS 2011 >, RX-SX-TUONO 2018 > APRILIA-865655

	P2R reference	189017
	Maker reference	861165

861165-CLAMP

	P2R reference	70159
	Maker reference	866136

TANK DE COOLING OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >-866136

	P2R reference	70039
	Maker reference	863943

CAP DE VASE D'EXPENSION OEM PIAGGIO APRILIA 50-125 RS 2011 >-863943

	P2R reference	63865
	Maker reference	00A00410501

00A00410501-CLAMP

	P2R reference	70060
	Maker reference	864572

864572-TUBO DPSTO. EXP. A RADIADOR TER125

	P2R reference	63865
	Maker reference	00A00410501

00A00410501-CLAMP

	P2R reference	63865
	Maker reference	00A00410501

00A00410501-CLAMP

	P2R reference	70057
	Maker reference	864510

864510-TUBO DRENAJE DPSTO. EXP. MUL125

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	70043
	Maker reference	864049

864049-CTO. ELECTROVENT. MUL125

	P2R reference	70046
	Maker reference	864164

SCREW PARKER (4. 5X50) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-864164

	P2R reference	63688
	Maker reference	000111425005

00011142500-TOR. AUTR. C/CRUZ B 4, 2X25 D7981 ZNB

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	63640
	Maker reference	000035153705

WASHER RUBBER (7. 5X14X3) OEM PIAGGIO COMMON A LA RANGE-00003515370

	P2R reference	189018
	Maker reference	864168

864168 - ÉCROU

	P2R reference	64866
	Maker reference	00H03805091

00H03805091-CLAMP FIX WATER TUBE DRD ´ 06
