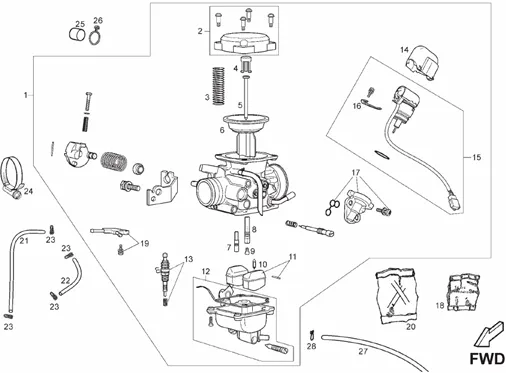

Vehicle Exploded View - DERBI GPR 125 2ver 4T E3 2009-2010 (EMEA)

	P2R reference	139450
	Maker reference	CM1282185

CARBURETTOR OEM DERBI 125 SM DRD-CM1282185

	P2R reference	70668
	Maker reference	877764

CARBURETTOR TOP CAP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-877764

	P2R reference	73177
	Maker reference	CM140902

SPRING OF RETURN DE BOISSEAU DE THROTTLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM140902

	P2R reference	69238
	Maker reference	842518

AGRAFE OF FITTING KIT D'AIGUILLE FOR CARBURETTOR CVEK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-842518

	P2R reference	73168
	Maker reference	CM140208

CARBURETTOR NEEDLE OEM PIAGGIO 125 MP3, X-EVO, X9, X8, VESPA GTS-CM140208

	P2R reference	73172
	Maker reference	CM140301

BOISSEAU OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T EN ALUMINIUM WITH MEPLAT FOR CARBURETTOR KEIHIN-CM140301

	P2R reference	73160
	Maker reference	CM140101

CM140101-GIGLEUR MIN 35

	P2R reference	73239
	Maker reference	CM144605

CM144605-TUBE MELANGEUR

	P2R reference	73155
	Maker reference	CM129906

CM129906-GIGLER MAXI 100

	P2R reference	73248
	Maker reference	CM147102

POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102

	P2R reference	69241
	Maker reference	842522

CARBURETTOR FLOAT OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-842522

	P2R reference	69242
	Maker reference	842523

FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-842523

	P2R reference	73305
	Maker reference	CM156710

CARBURETTOR FLOAT BOWL WITH PUMP DE REPRISE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM156710

	P2R reference	68789
	Maker reference	828844

CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844

	P2R reference	73209
	Maker reference	CM142913

STARTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-CM142913

	P2R reference	68788
	Maker reference	828843

PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843

	P2R reference	69239
	Maker reference	842519

842519-KIT BODY STARTER

	P2R reference	66793
	Maker reference	494921

494921 - JEU DE JOINTS

	P2R reference	69237
	Maker reference	842516

842516-KIT RECHAUFFEUR

	P2R reference	69240
	Maker reference	842521

842521-KIT HOSE

	P2R reference	189174
	Maker reference	CM200401

CM200401-HOSE

	P2R reference	189175
	Maker reference	CM200402

CM200402-HOSE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	189176
	Maker reference	864480

864480-CLAMP

	P2R reference	69200
	Maker reference	841695

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

	P2R reference	65047
	Maker reference	00H06400291

00H06400291 - COLLIER

	P2R reference	72283
	Maker reference	AP8220402

AP8220402-HOSE

	P2R reference	195456
	Maker reference	00N03800461

00N03800461 - COLLIER SERR. TUBE
