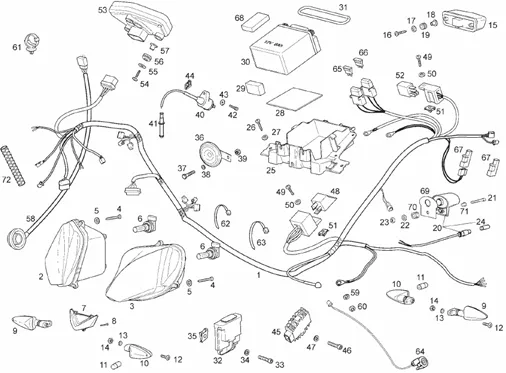

Vehicle Exploded View - DERBI GPR 125 2ver 4T E3 2009-2010 (EMEA)

	P2R reference	195440
	Maker reference	865635

865635 - CTO.INSTALAC.ELECTR.GPR125 09

	P2R reference	195441
	Maker reference	865631

865631-HEADLAMP ANT. DR.

	P2R reference	195442
	Maker reference	865632

865632-HEADLAMP ANT. G.

	P2R reference	63677
	Maker reference	000110318015

00011031801-SCREW TARAUD 3, 6X18 BLACK CL89H

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	194959
	Maker reference	00H01002131

00H01002131 - AMPOULE

	P2R reference	195443
	Maker reference	865633

865633-LAMP DE POSITION

	P2R reference	70774
	Maker reference	890214

REAR LEFT INDICATOR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-890214

	P2R reference	70773
	Maker reference	890213

REAR RIGHT INDICATOR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-890213

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489

	P2R reference	72330
	Maker reference	AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	193193
	Maker reference	865634

865634-HEADLAMP POST

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	151770
	Maker reference	864461

864461-CASQ. FIJ. LEG SHIELD TER125

	P2R reference	154576
	Maker reference	2B005447

RUBBER GUIDE FIL OEM PIAGGIO COMMON A LA RANGE-2B005447

	P2R reference	64135
	Maker reference	00G05701471

00G05701471-TUBE PHARES

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	189725
	Maker reference	00G01000791

00G01000791-TUBE HEADLAMP

	P2R reference	193194
	Maker reference	866007

866007-HOUSING BATTERY

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	154602
	Maker reference	00H01812471

00H01812471-TOPE BASE BATERIA DRD PRO

	P2R reference	187862
	Maker reference	00H01811471

00H01811471 - TOPE BATERIA DRD PRO 50CC

	P2R reference	67305
	Maker reference	584662

BATTERY 12V 6 AH YTX7L-BS OEM PIAGGIO COMMON A LA RANGE-584662

	P2R reference	136948
	Maker reference	1R000317

BATTERY 12V 6AH PTX7L-BS OEM PIAGGIO COMMON A LA RANGE (LG113XL70XH132)-1R000317

	P2R reference	64016
	Maker reference	00G01802361

00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE

	P2R reference	189107
	Maker reference	58191R

58191R - UNITE CDI

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	146215
	Maker reference	863339

863339-HORN

	P2R reference	71829
	Maker reference	AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	63767
	Maker reference	002620800225

NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022

	P2R reference	67186
	Maker reference	58083R

BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4T/APRILIA 125 SPORT-CITY-ONE-58083R

	P2R reference	67891
	Maker reference	640637

ANTIPARASITE OEM PIAGGIO APRILIA 125 SCARABEO 2007 > 2010-640637

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	67187
	Maker reference	58090R5
	Replaced by référence 221753

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference	63725
	Maker reference	000311050005

00031105000-WASHER PLATE M5 DIN125

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	192930
	Maker reference	864506

864506-RELAIS

	P2R reference	195444
	Maker reference	865645

865645-PANEL DE EDGE

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	154576
	Maker reference	2B005447

RUBBER GUIDE FIL OEM PIAGGIO COMMON A LA RANGE-2B005447

	P2R reference	151770
	Maker reference	864461

864461-CASQ. FIJ. LEG SHIELD TER125

	P2R reference	70887
	Maker reference	898626

SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 DRD, GPR 2005 > 2011/APRILIA 50 RX 2006 > 2017, SX 2006 > 2017, RS 2006 > 2019-898626

	P2R reference	63586
	Maker reference	000000210605

NUT FLANGE (6X1. 00) OEM PIAGGIO COMMON A LA RANGE-00000021060

	P2R reference	193196
	Maker reference	866451

866451 - COLLIER

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	69687
	Maker reference	00N05700601

CONTACTEUR DE STAND OEM PIAGGIO APRILIA ATLANTIC 125-250-300-400-500, SCARABEO 500, 1000 RSV-2, FUTURA, CAPONORD, TUONO V2, FALCO, 50-125 RS/MOTO GUZZI 750 BREVA, NEVADA-00N05700601

	P2R reference	189102
	Maker reference	864648

864648-FUSIBLE

	P2R reference	187335
	Maker reference	00G01002911

00G01002911 - FUSIBLE

	P2R reference	189103
	Maker reference	864565

864565 - DIODE

	P2R reference	192872
	Maker reference	00H06302771

00H06302771 - ARRET

	P2R reference	71352
	Maker reference	AP8117258

AP8117258-EPONGE

	P2R reference	154576
	Maker reference	2B005447

RUBBER GUIDE FIL OEM PIAGGIO COMMON A LA RANGE-2B005447

	P2R reference	151770
	Maker reference	864461

864461-CASQ. FIJ. LEG SHIELD TER125

	P2R reference	193197
	Maker reference	CM201402

CM201402 - PROTECTION TUYAU
