Vehicle Exploded View - DERBI GPR 125 2ver 4T E3 2009-2010 (EMEA) DERBI

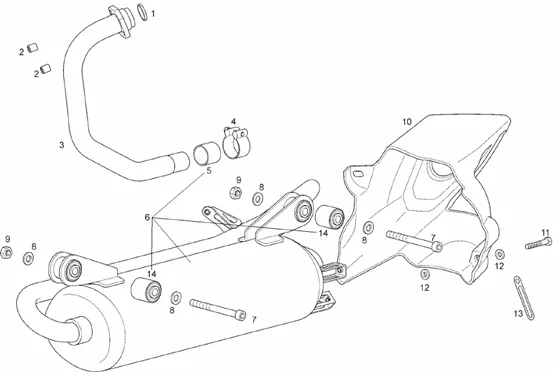

Vues éclatées : 14 TUYAU D’ÉCHAPPEMENT
Tuyau d’échappement
Search
GASKET MANIFOLD EXHAUST OEM PIAGGIO APRILIA 125 RS, RX, SX 2011 >-863506

1
P2R reference P2R reference 70030
Maker reference Maker reference 863506

GASKET MANIFOLD EXHAUST OEM PIAGGIO APRILIA 125 RS, RX, SX 2011 >-863506

More information

Quantity required : 1

862560 - TUERCA FIJACION ESCAPE GP130

2
P2R reference P2R reference 69968
Maker reference Maker reference 862560

862560-TUERCA FIJACION ESCAPE GP130

More information

Quantity required : 1

865637 - CTO.TUBO ESCAPE GPR125 09

3
P2R reference P2R reference 195449
Maker reference Maker reference 865637

865637 - CTO.TUBO ESCAPE GPR125 09

More information

Quantity required : 1

CLAMP EXHAUST OEM PIAGGIO APRILIA 125 RS 2011 > 2016/RX, SX 2018 > 2020-00H03405061

4
P2R reference P2R reference 64793
Maker reference Maker reference 00H03405061

CLAMP EXHAUST OEM PIAGGIO APRILIA 125 RS 2011 > 2016/RX, SX 2018 > 2020-00H03405061

More information

Quantity required : 1

GASKET/BUSH EXHAUST OEM PIAGGIO APRILIA 125 RS 2011 >, SX 2018 >, RX 2018 > 00H03406321

5
P2R reference P2R reference 64795
Maker reference Maker reference 00H03406321

GASKET/BUSH EXHAUST OEM PIAGGIO APRILIA 125 RS 2011 >, SX 2018 >, RX 2018 > 00H03406321

More information

Quantity required : 1

865638 - CTO.SORDINA GPR125 09

6
P2R reference P2R reference 195450
Maker reference Maker reference 865638

865638 - CTO.SORDINA GPR125 09

More information

Quantity required : 1

7
P2R reference P2R reference
Maker reference Maker reference 000000048505

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

8
P2R reference P2R reference 63787
Maker reference Maker reference 004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

9
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

More information

Quantity required : 1

2B003114 - PROTECTION SILENCIEUX

10
P2R reference P2R reference 142419
Maker reference Maker reference 2B003114

2B003114-PROTECTOR SILENCER

More information

Quantity required : 1

SCREW FLANGE TH (5X14) OEM PIAGGIO COMMON A LA RANGE-864201

11
P2R reference P2R reference 70047
Maker reference Maker reference 864201

SCREW FLANGE TH (5X14) OEM PIAGGIO COMMON A LA RANGE-864201

More information

Quantity required : 1

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

12
P2R reference P2R reference 63922
Maker reference Maker reference 00F04201361

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

More information

Quantity required : 1

00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B

13
P2R reference P2R reference 64101
Maker reference Maker reference 00G03702181

00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B

More information

Quantity required : 1

00H02201731 - SILENTBLOC

14
P2R reference P2R reference 64669
Maker reference Maker reference 00H02201731

00H02201731-RUBBER MOUNT

More information

Quantity required : 1
