Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

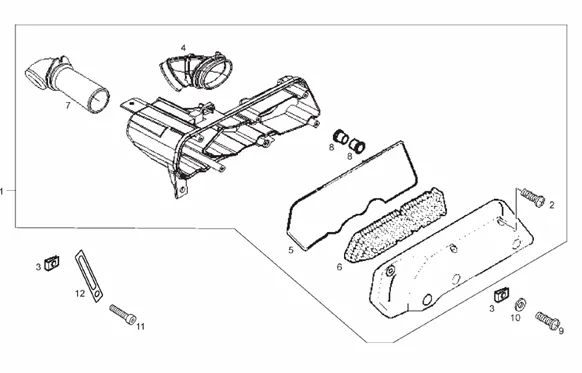

Vues éclatées : 31 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1151/GP1_50cc_Open_2ver_E2_2006-2008_(EMEA)_31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/9/img/168759.jpg)
1 |
HOUSING AIR FILTER SCOOT OEM PIAGGIO 50 2T ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR-1A017938 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/3/img/66743.jpg)
4 |
SLEEVE AIR FILTER SCOOT OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, FLY, VESPA LX, PRIMAVERA, VESPA SPRINT 2T/GILERA 50 RUNNER, STALKER 2T/APRILIA 50 SR H2O, SR SUPER MOTARD 2T-487592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/6/img/66746.jpg)
5 |
GASKET OF HOUSING AIR FILTER OEM PIAGGIO COMMON A LA RANGE 50 CC 2T 2004 >-487718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/5/img/157075.jpg)
6 |
ELEMENT/MOUSSE AIR FILTER (PREMIUM) SCOOT OEM PIAGGIO 50 ZIP 2T 2000 >, VESPA LX 2T 2005 >, LYBERTY 2T 2005 >, NRG 2005 >/GILERA 50 DNA, RUNNER 2005 >, STALKER 2001 >/APRILIA 50 SR 2012 >-1A0122830P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/7/img/68867.jpg)
7 |
SLEEVE ASPIRATION DE HOUSING AIR FILTER OEM PIAGGIO COMMON A LA RANGE-829715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
8 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 1 |
||||||
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
10 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B More informationQuantity required : 1 |
