Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)
Vues éclatées : 07B SELLE - COMPART.P-CASQUE

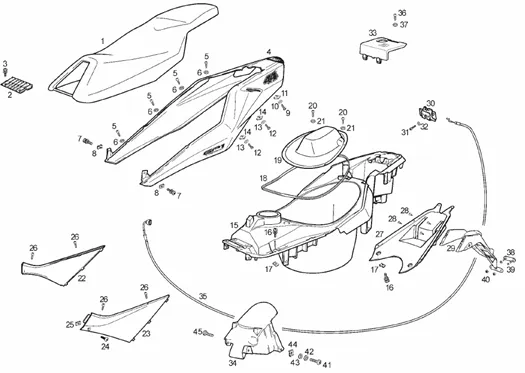

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1151/GP1_50cc_Open_2ver_E2_2006-2008_(EMEA)_07B.png)
1 |
00G00629011 - CTO.SILLIN GP1 RACE 250CC 05 More informationQuantity required : 1 |
||||||
|
2 |
00G05905941 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
3 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
|
4 |
20G00607161 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
5 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
6 |
WASHER MOUNTING PROTECTOR-SCREEN C-00H04901411 More informationQuantity required : 1 |
||||||
|
7 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
9 |
00008051600-BOLT BOMBEE ALLEN 5M80X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
10 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/1/img/63661.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-00008051200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
13 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
|
14 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
15 |
861441 - PORTACASCO GP1 50CC OPEN More informationQuantity required : 1 |
||||||
|
16 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
|
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
18 |
00G06301551-PROFIL DOOR-CASQUE More informationQuantity required : 1 |
||||||
|
19 |
861442 - TAPA ACCESO CARB.GP1 50CC OPEN More informationQuantity required : 1 |
||||||
|
20 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
21 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
|
22 |
00G06101181-COVER More informationQuantity required : 1 |
||||||
|
23 |
00G06101191-COVER More informationQuantity required : 1 |
||||||
|
24 |
00008051600-BOLT BOMBEE ALLEN 5M80X16 More informationQuantity required : 1 |
||||||
|
25 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
26 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
27 |
861476 - TAPA INF.COLIN GP1 50CC OPEN More informationQuantity required : 1 |
||||||
|
28 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
29 |
861960-SUPLMTO. GUARD. TRAS. GP1 50CC OPEN More informationQuantity required : 1 |
||||||
|
30 |
00G06801501 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
31 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
32 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
||||||
|
33 |
861412-TAPA BATERIA GP1 50CC OPEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/5/img/70915.jpg)
34 |
PROTECTOR-MUD ENGINE OEM PIAGGIO 50 NRG 2005 >/GILERA 50 RUNNER 2005 >-959440000C More informationQuantity required : 1 |
||||||
|
35 |
00G00604181 - SOUS-EN.CABLE FERMETURE SELLE More informationQuantity required : 1 |
||||||
|
36 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
37 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
38 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
|
39 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
40 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040 More informationQuantity required : 1 |
||||||
|
41 |
00092063514-SCREW More informationQuantity required : 1 |
||||||
|
42 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
43 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
44 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
45 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
