Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA) DERBI

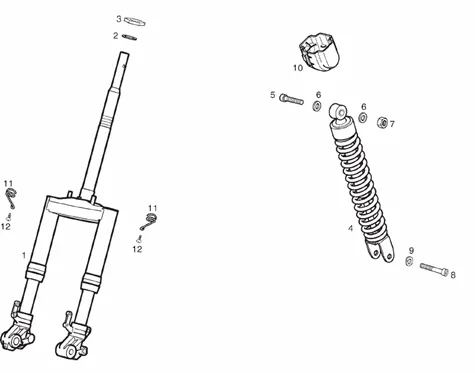

Vues éclatées : 2 FOURCHE
Fourche
Search
861216 - CTO.HORQU.GP1 50CC OPEN

1
P2R reference P2R reference 195107
Maker reference Maker reference 861216

861216-CTO. HORQU. GP1 50CC OPEN

More information

Quantity required : 1

WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514

2
P2R reference P2R reference 63783
Maker reference Maker reference 00375145

WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514

More information

Quantity required : 1

NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094

3
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094

More information

Quantity required : 1

861610 - CTO.AMORTIG.GP1 50CC BASE

4
P2R reference P2R reference 195108
Maker reference Maker reference 861610

861610 - CTO.AMORTIG.GP1 50CC BASE

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 000040145005

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

6
P2R reference P2R reference 63789
Maker reference Maker reference 004021000015

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

7
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 1

8
P2R reference P2R reference
Maker reference Maker reference 000042150005

9
P2R reference P2R reference
Maker reference Maker reference 000000331005

861592 - TAPETA SUP.AMORTG.GP1 50CC OPEN

10
P2R reference P2R reference 195109
Maker reference Maker reference 861592

861592 - TAPETA SUP.AMORTG.GP1 50CC OPEN

More information

Quantity required : 1

00H04401261 - RESSORT

11
P2R reference P2R reference 192912
Maker reference Maker reference 00H04401261

00H04401261 - RESSORT

More information

Quantity required : 1

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

12
P2R reference P2R reference 70959
Maker reference Maker reference 969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

More information

Quantity required : 1
