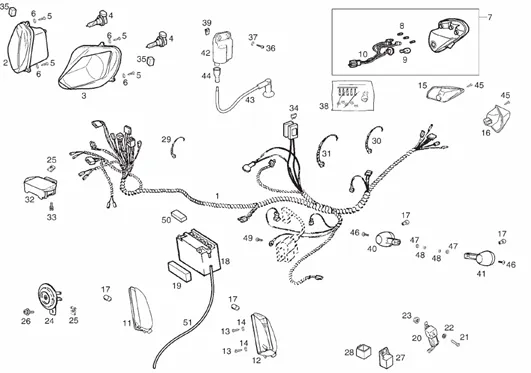

Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA)

	P2R reference	195151
	Maker reference	86101R

86101R - FAISCEAU DE CABLES

	P2R reference	63972
	Maker reference	00G01026011

00G01026011-LAMP UNIT DR.

	P2R reference	63973
	Maker reference	00G01027011

00G01027011 - OPTIQUE GA.

	P2R reference	64381
	Maker reference	00H01004131

AMPOULE/LAMPE 12V 35W H8 OEM PIAGGIO COMMON A LA RANGE-00H01004131

	P2R reference	63676
	Maker reference	000110314015

00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64387
	Maker reference	00H01011321

TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01011321

	P2R reference	64371
	Maker reference	00H01001371

00H01001371 - AMPOULE 12V.2,31W

	P2R reference	48170
	Maker reference	AP8127490

BULB W16W 12V 16W "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC 2003>2008, 50 RS 2006>2010 -AP8127490

	P2R reference	64380
	Maker reference	00H01003951

00H01003951-HARNESS LAMP REAR

	P2R reference	194960
	Maker reference	00G01706021

00G01706021 - CLIGNOTANT

	P2R reference	194961
	Maker reference	00G01706311

00G01706311 - CLIGNOTANT

	P2R reference	195152
	Maker reference	861886

861886-CRISTAL NG. INTT. TRAS. DR. GP1 50 OPEN

	P2R reference	195153
	Maker reference	861887

861887 - CRISTAL NG.INTT.TRAS.IZ.GP1 50 OPEN

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489

	P2R reference	65970
	Maker reference	234390

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

	P2R reference	195116
	Maker reference	861956

861956 - ESPUMA TOPE BATERIA GP1 OPEN 80X40X15

	P2R reference	64998
	Maker reference	00H05700711

RELAY "PIAGGIO GENUINE PART" GILERA 125 SC -00H05700711

	P2R reference	65408
	Maker reference	0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

	P2R reference	64382
	Maker reference	00H01005311

HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference	70898
	Maker reference	942577

942577-BRACKET RELAIS

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	67191
	Maker reference	58096R

REGULATEUR DE TENSION SCOOT OEM PIAGGIO 50 ZIP 2009 >, TYPHOON 2006 >, FLY 2005 >, LIBERTY 2006 >, NRG POWER 2005 > VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER 2005 >, RUNNER 2005 >-58096R

	P2R reference	64151
	Maker reference	00G06800021

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021

	P2R reference	64373
	Maker reference	00H01001911

00H01001911-FUSIBLE

	P2R reference	41728
	Maker reference	890512

GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	70041
	Maker reference	863991

863991 - R-KIT REPARACION INSTLCION.ELEC.GP1 50CC

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64598
	Maker reference	00H01706021

FRONT LEFT INDICATOR/REAR RIGHT ROND VERRE WHITE OEM DERBI 2011 <-00H01706021

	P2R reference	64597
	Maker reference	00H01704311

FRONT RIGHT INDICATOR/REAR LEFT ROND VERRE WHITE OEM DERBI 2011 <-00H01704311

	P2R reference	187413
	Maker reference	00G03310171

00G03310171 - BOBINE

	P2R reference	68522
	Maker reference	825186

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186

	P2R reference	65966
	Maker reference	231571

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	63726
	Maker reference	000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	195116
	Maker reference	861956

861956 - ESPUMA TOPE BATERIA GP1 OPEN 80X40X15

	P2R reference	195154
	Maker reference	863038

863038 - TUBE EVENT DE LA BATTERIE
