Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

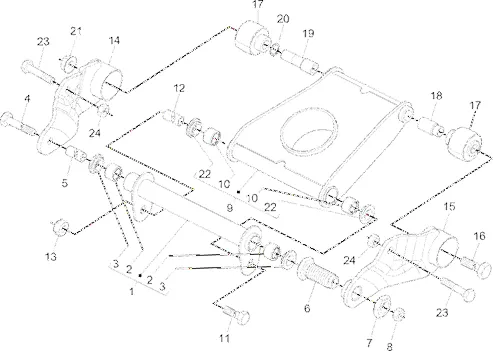

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/172/Fuoco_500_4T-4V_ie_E3_LT_2013-2014_04.01.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/2/6/img/158326.jpg)
1 |
OEM MOPED SWINGARM COTE CADRE OEM PIAGGIO 400 MP3 2007 >, 500 MP3 2010 >/GILERA 500 FUOCO 2007 >-1C003645R5 More informationQuantity required : 1 |
||||||
|
1 |
OEM MOPED SWINGARM COTE CADRE OEM PIAGGIO 400 MP3 2007 >, 500 MP3 2010 >/GILERA 500 FUOCO 2007 >-1C003645R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
2 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
3 |
BUSH/GASKET ARTICULATION OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/9/img/67329.jpg)
4 |
SCREW TH (10X295) OEM PIAGGIO COMMON A LA RANGE-597080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/8/img/72978.jpg)
5 |
SPACER DE OEM MOPED SWINGARM OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC-CM067805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/1/img/67351.jpg)
6 |
SCREW BRACKET SILENT BLOC ENGINE OEM PIAGGIO COMMON A TOUTE LA RANGE-597774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/7/img/67067.jpg)
7 |
NUT SPECIAL (22X2 H = 8) OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-564611 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
9 |
649100 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
|
10 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
11 |
SPINDLE/SCREW ARM DE SUSPENSION (10X202) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-271807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/5/img/72975.jpg)
12 |
SPACER OEM MOPED SWINGARM (L183MM) OEM PIAGGIO 125-250-300-400-500 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC-CM067801 More informationQuantity required : 1 |
||||||
|
13 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
14 |
BRACKET DE RUBBER MOUNT DE OEM MOPED SWINGARM RIGHT OEM PIAGGIO 400-500 MP3/GILERA 500 FUOCO-649232 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/2/9/img/86929.jpg)
15 |
BRACKET DE RUBBER MOUNT DE OEM MOPED SWINGARM LEFT OEM PIAGGIO 400-500 MP3/GILERA 500 FUOCO-649230 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/3/5/img/86935.jpg)
16 |
SCREW M14X1. 5 OEM PIAGGIO 500-530 MP3-649267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/2/8/img/158328.jpg)
17 |
RUBBER MOUNT OEM MOPED SWINGARM OEM PIAGGIO 400-500 MP3 2007 >/GILERA 500 FUOCO 2007 > 2014, GP 800 2007 > 2011/APRILIA 850 SRV 2012 > 2014-1C005178 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/3/img/82453.jpg)
18 |
SPACER OEM MOPED SWINGARM OEM PIAGGIO 500 MP3 2011 >-598878 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/5/4/img/89954.jpg)
19 |
SPACER OEM MOPED SWINGARM OEM PIAGGIO 500-530 MP3-665837 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/3/img/73673.jpg)
20 |
CLIPS/CIRCLIPS (18. 6) OEM PIAGGIO COMMON A LA RANGE-006420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/2/img/68652.jpg)
21 |
NUT M14 X 1, 5 OEM PIAGGIO COMMON A LA RANGE-827116 More informationQuantity required : 1 |
||||||
|
22 |
BUSH/GASKET ARTICULATION OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/4/img/67354.jpg)
23 |
BOLT OEM PIAGGIO-597893 More informationQuantity required : 2 |
||||||
|
24 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
