Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

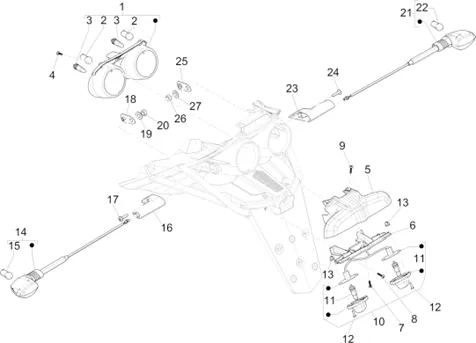

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/172/Fuoco_500_4T-4V_ie_E3_LT_2013-2014_06.04.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/8/2/img/85982.jpg)
1 |
LAMP REAR OEM PIAGGIO GILERA 500 FUOCO 2007 > 2014-640544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
2 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
4 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 3 |
||||||
5 |
1B000376-BRACKET * More informationQuantity required : 1 |
||||||
|
6 |
1B000377-PLATE AR GREY * More informationQuantity required : 1 |
||||||
|
7 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/1/0/img/96310.jpg)
8 |
SCREW TORX (4X22, 3) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM180702 More informationQuantity required : 2 |
||||||
|
9 |
SCREW TORX (4X22, 3) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM180702 More informationQuantity required : 2 |
||||||
|
10 |
1D000160 - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
11 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
|
12 |
SCREW TORX (4X22, 3) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM180702 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
13 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/3/img/67873.jpg)
14 |
INDICATOR MAXI SCOOTER OEM PIAGGIO 250-300-400-500 MP3 2008 > 2014 FRONT RIGHT OU REAR LEFT-6402455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
15 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
16 |
1B000379-BRACKET INDICATOR AVT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/9/img/96289.jpg)
17 |
SCREW TORX (6X25) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179305 More informationQuantity required : 1 |
||||||
|
18 |
1B000381-BRACKET LAT. LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
19 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/8/8/img/75588.jpg)
20 |
NUT TH (M10) OEM PIAGGIO COMMON A LA GALLE-1B000443 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/2/img/67872.jpg)
21 |
INDICATOR MAXI SCOOTER OEM PIAGGIO 250-300-400-500 MP3 2008 > 2014 FRONT LEFT OU REAR RIGHT-6402445 More informationQuantity required : 1 |
||||||
|
22 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
||||||
|
23 |
1B000378-BRACKET INDICATOR AVT DR More informationQuantity required : 1 |
||||||
|
24 |
SCREW TORX (6X25) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179305 More informationQuantity required : 1 |
||||||
|
25 |
1B000380-BRACKET LAT. RIGHT More informationQuantity required : 1 |
||||||
|
26 |
NUT TH (M10) OEM PIAGGIO COMMON A LA GALLE-1B000443 More informationQuantity required : 1 |
||||||
|
27 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
