Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

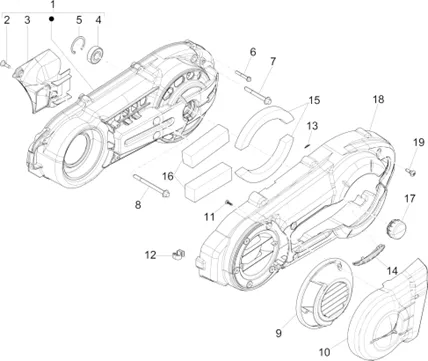

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/172/Fuoco_500_4T-4V_ie_E3_LT_2013-2014_01.15.jpg)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/9/img/70639.jpg)
1 |
COVER/COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3 2007 >, 400-500 BEVERLY 2005 >, 400 X-EVO 2007 >, 500 X10 2012 >, 500 X9 2003 >/GILERA 500 NEXUS 2006 >, FUOCO 2007 >-8769925 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
3 |
CLIPS/CIRCLIPS (35. 7X43. 5X1. 75) OEM PIAGGIO COMMON A LA RANGE-825667 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/8/img/69138.jpg)
4 |
BEARING (17X40X12) COVER TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 350-400-500-840277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/2/0/img/70520.jpg)
5 |
DEFLECTOR AIR CASING TRANSMISSION OEM PIAGGIO 500 MP3 2007 >-874136 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
6 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 7 |
||||||
|
6 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/6/img/72716.jpg)
7 |
SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-B016766 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/7/img/72717.jpg)
8 |
SCREW FLANGE TH (8X100) OEM PIAGGIO COMMON A LA RANGE-B016767 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/3/0/2/img/94302.jpg)
9 |
GRILLE COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3, 400 X8, X-EVO/GILERA 500 NEXUS, 500 FUOCO-975684 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/1/5/6/img/93156.jpg)
10 |
PRISE D'AIR COVER DE TRANSMISSION OEM PIAGGIO 400-500 MP3/GILERA 500 FUOCO-873279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
11 |
SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
12 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/8/3/img/74283.jpg)
13 |
WASHER/CLIPS DE BLOCAGE OEM PIAGGIO COMMON A TOUTE LA RANGE-085508 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/5/6/img/92956.jpg)
14 |
PROTECTOR/PAD COVER DE TRANSMISSION OEM PIAGGIO 400 MP3, X-EVO, X8, 500 MP3, X10/GILERA 500 NEXUS, FUOCO-842013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/9/img/69059.jpg)
15 |
MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833321 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/8/img/69058.jpg)
16 |
MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/4/img/69144.jpg)
17 |
COVER ROND DE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-840439 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/9/2/img/139592.jpg)
18 |
COVER INSONORISANT DE TRANSMISSION OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO-1A005445 More informationQuantity required : 1 |
||||||
|
19 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
