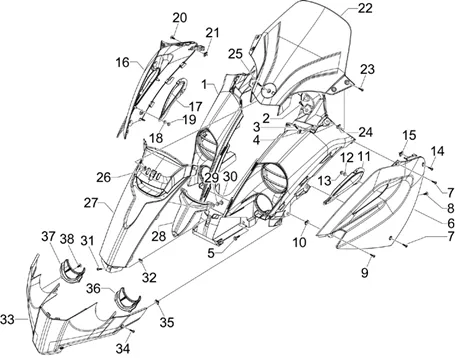

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014

	P2R reference	87811
	Maker reference	653414000C

FRONT PANEL FRONT OEM PIAGGIO GILERA 500 FUOCO 2007 > BLACK-653414000C

	P2R reference	66117
	Maker reference	272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66034
	Maker reference	259348

SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348

	P2R reference	87826
	Maker reference	653419

LEFT FRONT SIDE PROTECTION "PIAGGIO GENUINE PART" GILERA 500 FUOCO -653419

	P2R reference	87827
	Maker reference	65341900BR

65341900BR - CACHE LAT.GAU.

	P2R reference	87829
	Maker reference	65341900EZ

65341900EZ - CACHE LAT.GAU.

	P2R reference	87832
	Maker reference	65341900NI

LEFT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK 80/B -65341900NI-

	P2R reference	87833
	Maker reference	65341900NL

LEFT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK 85/B -65341900NL-

	P2R reference	85482
	Maker reference	624995

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995

	P2R reference	67113
	Maker reference	575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	87846
	Maker reference	653421

653421-GRILLE LATERAL GAU.

	P2R reference	66586
	Maker reference	479882

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

	P2R reference	65959
	Maker reference	230359

WASHER BRAKE OEM PIAGGIO COMMON A TOUTE LA RANGE-230359

	P2R reference	85482
	Maker reference	624995

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	66187
	Maker reference	288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

	P2R reference	168861
	Maker reference	65342000EZ

RIGHT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO GRIS 742/B -65342000EZ-

	P2R reference	87836
	Maker reference	653420

RIGHT FRONT SIDE PROTECTION "PIAGGIO GENUINE PART" GILERA 500 FUOCO -653420-

	P2R reference	87837
	Maker reference	65342000BR

65342000BR - CACHE LAT.DRO.

	P2R reference	168861
	Maker reference	65342000EZ

RIGHT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO GRIS 742/B -65342000EZ-

	P2R reference	87842
	Maker reference	65342000NI

RIGHT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK 80/B -65342000NI

	P2R reference	87843
	Maker reference	65342000NL

RIGHT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK 85/B -65342000NL-

	P2R reference	87847
	Maker reference	653422

653422-GRILLE LATERAL DR.

	P2R reference	66586
	Maker reference	479882

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

	P2R reference	65959
	Maker reference	230359

WASHER BRAKE OEM PIAGGIO COMMON A TOUTE LA RANGE-230359

	P2R reference	85482
	Maker reference	624995

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	66187
	Maker reference	288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

	P2R reference	87812
	Maker reference	653415000C

653415000C - FACE AV PROTECTION

	P2R reference	88389
	Maker reference	654507

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-654507

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	87813
	Maker reference	653416

653416-FRONT PANEL AVT

	P2R reference	87814
	Maker reference	6534160090

CENTRAL FRONT COVER "PIAGGIO GENUINE PART" GILERA 500 FUOCO BLACK -6534160090-

	P2R reference	87816
	Maker reference	653417

653417 - GRILLE

	P2R reference	66586
	Maker reference	479882

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

	P2R reference	65959
	Maker reference	230359

WASHER BRAKE OEM PIAGGIO COMMON A TOUTE LA RANGE-230359

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	87817
	Maker reference	653418

653418-COVER INF.

	P2R reference	87818
	Maker reference	653418000C

COVER LOWER DE FRONT PANEL FRONT OEM PIAGGIO GILERA 500 FUOCO 2007-653418000C

	P2R reference	87820
	Maker reference	65341800EZ

65341800EZ - CACHE INF.

	P2R reference	87823
	Maker reference	65341800NI

65341800NI - CACHE INF.

	P2R reference	85482
	Maker reference	624995

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-624995

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	87951
	Maker reference	653697

653697 - PROTECTION GAUCHE

	P2R reference	87952
	Maker reference	653698

653698 - PROTECTION DRT

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498
