Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

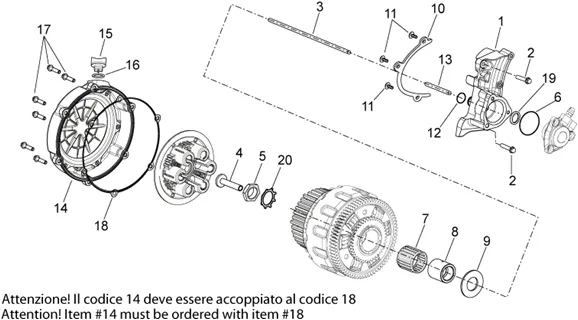

Moteur : 29.48 EMBRAGUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_29.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/4/9/img/41349.jpg)
1 |
CLUTCH DISENGAGEMENT FLANGE "PIAGGIO GENUINE PART" APRILIA 750 SHIVER/DORSODURO -872850- More informationQuantity required : 1 |
||||||
1 |
B013074-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/8/img/70428.jpg)
2 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-872421 More informationQuantity required : 2 |
||||||
|
3 |
874660-ROD More informationQuantity required : 1 |
||||||
|
4 |
873127-ROD More informationQuantity required : 1 |
||||||
|
5 |
876790-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/9/9/img/41299.jpg)
6 |
GASKET OF CONTROL CLUTCH OEM PIAGGIO APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO-871609 More informationQuantity required : 1 |
||||||
|
7 |
Cage à rouleaux |
||||||
|
7 |
974361-CAGE A AIGUILLE 35X40X35, 8 More informationQuantity required : 1 |
||||||
|
8 |
873543-SPACER More informationQuantity required : 1 |
||||||
|
8 |
876477 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.jpg)
9 |
WASHER CLUTCH OEM APRILIA COMMON A LA RANGE-974320 More informationQuantity required : 1 |
||||||
|
10 |
877193-TTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-831153 More informationQuantity required : 3 |
||||||
|
12 |
GASKET OF CONTROL CLUTCH OEM PIAGGIO APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO-871609 More informationQuantity required : 1 |
||||||
|
13 |
874191-BUTEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/0/5/0/img/205050.jpg)
14 |
COVER CLUTCH OEM APRILIA 900 DORSODURO, SHIVER 2017 >-2R000564 More informationQuantity required : 1 |
||||||
|
14 |
COVER CLUTCH OEM APRILIA 900 DORSODURO, SHIVER 2017 >-2R000564 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/7/9/img/61979.jpg)
14 |
COVER CLUTCH COMPLETE OEM PIAGGIO APRILIA 750 SHIVER 2007, DORSODURO 2008 >-B0136345 More informationQuantity required : 1 |
||||||
|
15 |
873995-CAP OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/1/img/43311.jpg)
16 |
O-RING CAP DE REMPLISSAGE OIL OEM APRILIA 750 DORSODURO, SHIVER-974230 More informationQuantity required : 1 |
||||||
|
17 |
871094-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/2/9/0/img/41290.jpg)
18 |
GASKET COVER CLUTCH WITH FENTE FOR O-RING OEM APRILIA 750 DORSODURO, SHIVER-871095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/1/1/img/62011.jpg)
18 |
B015372 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/0/img/68550.jpg)
19 |
OIL SEAL 8X16X7 RECEPTEUR CLUTCH OEM PIAGGIO APRILIA 750 DORSODURO, SHIVER-825577 More informationQuantity required : 1 |
||||||
|
20 |
876296-WASHER More informationQuantity required : 1 |
