Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

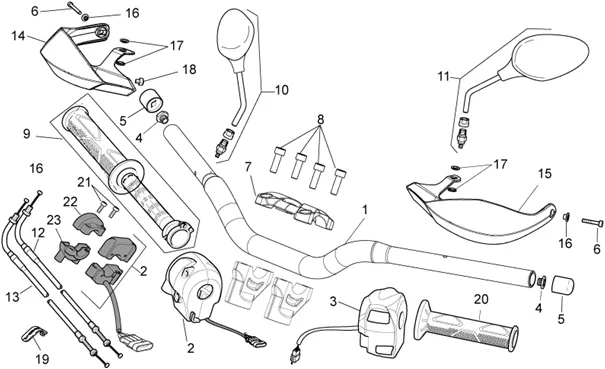

Chassis : 28.19 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.19.PNG)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008>2011- -856902- More informationQuantity required : 1 |
||||||
|
1 |
HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2012>2013 -B043013- More informationQuantity required : 1 |
||||||
|
2 |
883542 - DISPOSITIF More informationQuantity required : 1 |
||||||
|
2 |
COMMODO/SWITCH RIGHT OEM APRILIA 750 DORSODURO, SHIVER 2008 > 2016-B045066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/3/5/img/42435.jpg)
3 |
COMMODO/SWITCH LEFT OEM PIAGGIO APRILIA 750-900 DORSODURO, SHIVER, 1200 DORSODURO, CAPONORD-896107 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
4 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/9/img/40729.jpg)
5 |
HANDLEBAR END OEM PIAGGIO APRILIA 1200 CAPONORD 2014 >, 750-900-1200 DORSODURO 2008 >/MOTO-GUZZI 850 V85 2019 > STELVIO 2024 >-859949 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/9/img/71859.jpg)
6 |
SCREW BTR (6X50) HANDLEBAR END OEM PIAGGIO COMMON A LA GAME MOTO APRILIA-AP8150324 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/6/0/img/39160.jpg)
7 |
CAVALIER UPPER DE HANDLEBAR OEM PIAGGIO APRILIA 750 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO-851628 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/4/6/img/62446.jpg)
7 |
CAVALIER UPPER DE HANDLEBAR (28. 6) OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016-B044863 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
8 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/5/img/73415.jpg)
9 |
REVETEMENT DE GRIP RIGHT WITH SLEEVE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01603480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
10 |
RIGHT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/3/img/71243.jpg)
11 |
LEFT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104922 More informationQuantity required : 1 |
||||||
|
12 |
856811 - CABLE OUVERTURE GAZ More informationQuantity required : 1 |
||||||
|
12 |
898078-CABLE OUVERTURE THROTTLE More informationQuantity required : 1 |
||||||
|
13 |
856812 - CABLE FERMETURE GAZ More informationQuantity required : 1 |
||||||
|
13 |
898079 - CABLE FERMETURE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/3/6/img/40236.jpg)
14 |
PROTEGE-MAIN RIGHT OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016, 900 DORSODURO 2017 >, V85 TT 2019 > MOTO GUZZI-856855 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/3/0/img/156930.jpg)
15 |
PROTEGE-MAIN LEFT OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016, 900 DORSODURO 2017 >, V85 TT 2019 > MOTO GUZZI-2B005927 More informationQuantity required : 1 |
||||||
|
15 |
PROTEGE-MAIN LEFT OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016, 900 DORSODURO 2017 >, V85 TT 2019 > MOTO GUZZI-2B005927 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
16 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/2/img/46722.jpg)
17 |
SPACER EPAULEE OEM PIAGGIO COMMON A LA RANGE-AP8121080 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
18 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081 More informationQuantity required : 2 |
||||||
|
19 |
860744-CLAMP EL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
20 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
|
21 |
AP8118492-SCREW CALOTTE More informationQuantity required : 1 |
||||||
|
22 |
AP8118567-CAVALIER AR. CONTROL THROTTLE More informationQuantity required : 1 |
||||||
|
23 |
AP8118566 - CAVALIER AV. COMMANDE GAZ; More informationQuantity required : 1 |
