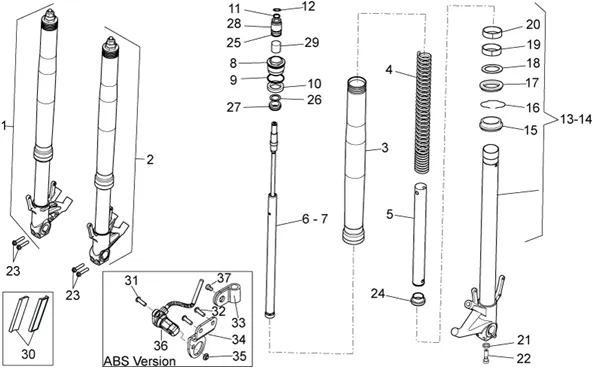

Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.07 FOURCHE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.07.PNG)
1 |
Tige avec fond dte |
||||||
|
2 |
856901-ROD WITH FOND GCHE More informationQuantity required : 1 |
||||||
|
3 |
890392-FOURREAU * More informationQuantity required : 2 |
||||||
|
4 |
890389-SPRING More informationQuantity required : 2 |
||||||
|
5 |
890388-HOSE PRECHARGE More informationQuantity required : 2 |
||||||
|
6 |
890390-ELEM. POMPAGE CPL More informationQuantity required : 2 |
||||||
|
7 |
890391-ELEM. POMPAGE CPL More informationQuantity required : 2 |
||||||
|
8 |
890418-CAP FORK More informationQuantity required : 2 |
||||||
|
9 |
856034 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
10 |
856035 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
11 |
AP8123820-O-RING More informationQuantity required : 2 |
||||||
|
12 |
AP8123821-BUSH OF BUTEE More informationQuantity required : 2 |
||||||
|
13 |
890393 - TIGE+PORTE-ROUE D More informationQuantity required : 1 |
||||||
|
14 |
890399 - TIGE+PORTE-ROUE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/0/4/img/40004.jpg)
15 |
PROTECTOR POUSSIERE FORK OEM APRILIA 750 DORSODURO, SHIVER-856040 More informationQuantity required : 2 |
||||||
|
16 |
AP8123806 - BAGUE SEEGER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/0/3/img/41703.jpg)
17 |
OIL SEAL DE FORK SHOWA OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016-890396 More informationQuantity required : 2 |
||||||
|
18 |
856043-CIRCLIPS More informationQuantity required : 2 |
||||||
|
19 |
890397 - DOUILLE GUIDAGE More informationQuantity required : 2 |
||||||
|
20 |
890398 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/0/8/img/40008.jpg)
21 |
WASHER CUIVRE13X8X1 OEM APRILIA COMMON A LA RANGE-856046 More informationQuantity required : 2 |
||||||
|
22 |
895451 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
23 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 4 |
||||||
|
24 |
856317-CUVETTE More informationQuantity required : 2 |
||||||
|
25 |
890417-BUSH More informationQuantity required : 2 |
||||||
|
26 |
AP8123816-WASHER More informationQuantity required : 2 |
||||||
|
27 |
AP8123815-BUSH More informationQuantity required : 2 |
||||||
|
28 |
890416-REGULATEUR SPRING More informationQuantity required : 2 |
||||||
|
29 |
890419-PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
30 |
CATADIOPTRE AMBRE DE FORK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU05781630 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
31 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
32 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
|
33 |
859777-PLATE More informationQuantity required : 1 |
||||||
|
34 |
856557-PLATE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
35 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
36 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
36 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
37 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
