Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015 APRILIA

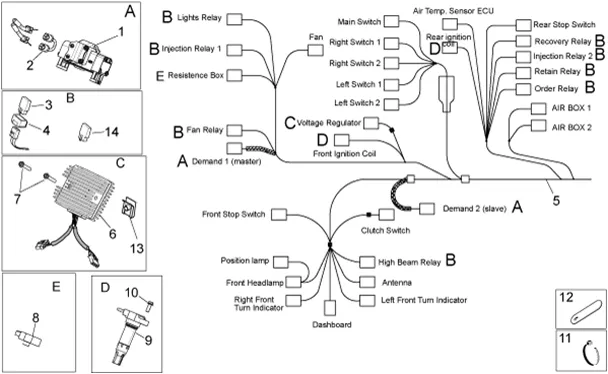

Chassis : 28.32 CIRCUIT ELECTRIQUE I
Circuit electrique I
Search
SENSOR POSITION THROTTLE OEM PIAGGIO APRILIA DORSODURO, SHIVER, TUONO, RSV-4/MOTO-GUZZI CALIFORNIA, AUDACE, ELDORADO, MP3 500 2021-B044414

1
P2R reference P2R reference 72848
Maker reference Maker reference B044414

SENSOR POSITION THROTTLE OEM PIAGGIO APRILIA DORSODURO, SHIVER, TUONO, RSV-4/MOTO-GUZZI CALIFORNIA, AUDACE, ELDORADO, MP3 500 2021-B044414

More information

Quantity required : 1

RUBBER SENSOR OF POSITION OEM APRILIA COMMON A LA RANGE-854811

2
P2R reference P2R reference 39887
Maker reference Maker reference 854811

RUBBER SENSOR OF POSITION OEM APRILIA COMMON A LA RANGE-854811

More information

Quantity required : 1

RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462

3
P2R reference P2R reference 72329
Maker reference Maker reference AP8224462

RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462

More information

Quantity required : 8

SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283

4
P2R reference P2R reference 72277
Maker reference Maker reference AP8220283

SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283

More information

Quantity required : 8

860475 - CABLAGE PRINCIPAL

5
P2R reference P2R reference 40935
Maker reference Maker reference 860475

860475 - CABLAGE PRINCIPAL

More information

Quantity required : 1

896741 - CABLAGE PRINCIPAL

5
P2R reference P2R reference 42603
Maker reference Maker reference 896741

896741 - CABLAGE PRINCIPAL

More information

Quantity required : 1

896742 - CABLAGE PRINCIPAL

5
P2R reference P2R reference 42604
Maker reference Maker reference 896742

896742 - CABLAGE PRINCIPAL

More information

Quantity required : 1

58189R - REGULATEUR DE TENSION

6
P2R reference P2R reference 38281
Maker reference Maker reference 58189R

58189R - REGULATEUR DE TENSION

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

7
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

More information

Quantity required : 2

896897 - STAND CONTROL DEVICE

8
P2R reference P2R reference 42637
Maker reference Maker reference 896897

896897-STAND CONTROL DEVICE

More information

Quantity required : 1

640695 - BOBINE H.T.

9
P2R reference P2R reference 38503
Maker reference Maker reference 640695

640695-BOBINE H. T.

More information

Quantity required : 2

SCREW TH FLANGE (6X14) OEM PIAGGIO COMMON A LA RANGE-872425

10
P2R reference P2R reference 70429
Maker reference Maker reference 872425

SCREW TH FLANGE (6X14) OEM PIAGGIO COMMON A LA RANGE-872425

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416

11
P2R reference P2R reference 71394
Maker reference Maker reference AP8120416

HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416

More information

Quantity required : 6

AP8102386 - FASCETTA IN NYLON NERA

12
P2R reference P2R reference 45158
Maker reference Maker reference AP8102386

AP8102386-FASCETTA IN NYLON NERA

More information

Quantity required : 5

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 4

RELAIS 5 FICHES 12V 40A-15A OEM PIAGGIO COMMON A LA RANGE

14
P2R reference P2R reference 73458
Maker reference Maker reference GU29732550

RELAIS 5 FICHES 12V 40A-15A OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 1
