Vehicle Exploded View - GILERA DNA 50 DNA MY 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

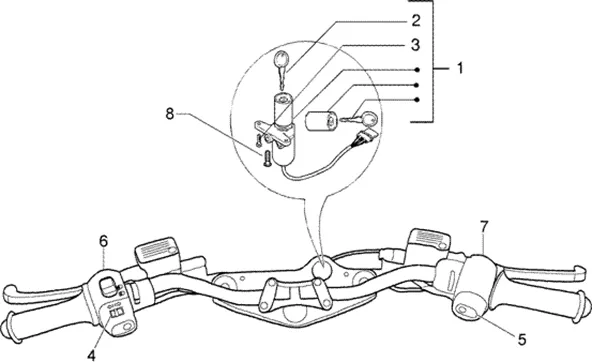

Connexions électriques : T42 DISPOSITIFS ELECTRIQUES - COMMUTATEUR À CLEF
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/676/DNA_MY_2005_T42.PNG)
1 |
GR.SERRURE DNA 50 (2) |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/1/4/7/img/94147.jpg)
2 |
EBAUCHE DE CLE OEM GILERA DNA 1998-2006-970239 More informationQuantity required : 1 |
||||||
|
3 |
941341-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/1/7/5/img/94175.jpg)
4 |
SWITCH - LEFT "PIAGGIO GENUINE PART" GILERA 50-125 DNA -970385- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/1/7/6/img/94176.jpg)
5 |
COMMODO/SWITCH RIGHT OEM PIAGGIO GILERA 50-125 DNA-970386 More informationQuantity required : 1 |
||||||
|
6 |
581901-BRACKET CLIGNOTEUR LEFT C27 More informationQuantity required : 1 |
||||||
|
7 |
POIGNEE GAZ+SUPPORT INTERUPTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/8/img/78328.jpg)
8 |
SCREW BTR (8X18) OEM PIAGGIO COMMON A LA RANGE-319532 More informationQuantity required : 1 |
