Vehicle Exploded View - GILERA DNA 50 DNA MY 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

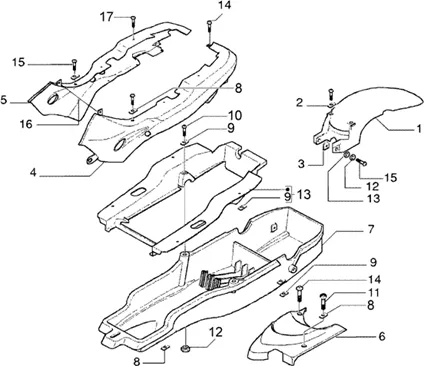

Châssis : T26 GARDE-BOUE ARRIÈRE-DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/676/DNA_MY_2005_T26.PNG)
1 |
620222000C - GARDE-BOUE AR. NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
4 |
57668300BM - FLANC ARG DNA RST More informationQuantity required : 1 |
||||||
|
4 |
57668300EE - FLANC ARG DNA RST More informationQuantity required : 1 |
||||||
|
5 |
62020200BM - LATERALE More informationQuantity required : 1 |
||||||
|
5 |
62020200EE - LATERALE More informationQuantity required : 1 |
||||||
|
6 |
CARB ACCESS TRAPDOOR "PIAGGIO GENUINE PART" GILERA DNA 50 1998>2006 -970214000C- More informationQuantity required : 1 |
||||||
|
7 |
970267000C - COUVETTE SELLE More informationQuantity required : 1 |
||||||
|
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 5 |
||||||
|
9 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/6/4/6/img/75646.jpg)
10 |
SCREW TORX (6X55) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-1B000678 More informationQuantity required : 2 |
||||||
|
10 |
SCREW TORX (6X55) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-1B000678 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
11 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
12 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
|
13 |
970268 - ENCADREMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
14 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
15 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
||||||
|
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
17 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 12 |
