Vehicle Exploded View - GILERA DNA 50 DNA MY 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

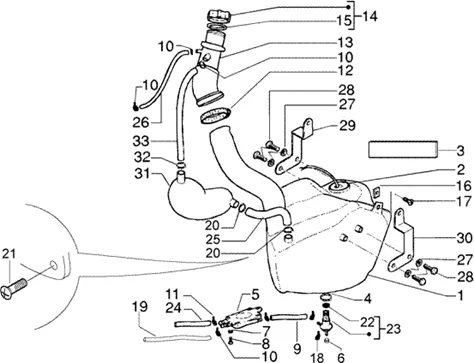

Châssis : T29 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/676/DNA_MY_2005_T29.PNG)
1 |
577215-TANK More informationQuantity required : 1 |
|||||||||
|
2 |
CM075605-JAUGE A OIL More informationQuantity required : 1 |
|||||||||
|
3 |
JOINT |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
4 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
5 |
FUEL PUMP OEM PIAGGIO 50 FLY 4T 2012 >, NRG 2005 >, 125 MP3 2007 >, X8 2004 >, X-EVO 2007 >/50-125 GILERA RUNNER 2005 >/APRILIA 125 ATLANTIC 2003 >-CM120903 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/8/img/65678.jpg)
6 |
CAP OBTURATEUR (D6) OEM PIAGGIO COMMON A LA RANGE-090958 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
7 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
8 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
|||||||||
|
9 |
Tuyau essence |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
10 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
11 |
HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/1/img/72871.jpg)
12 |
CLAMP 56MM SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM001910 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/4/8/img/81148.jpg)
13 |
FUEL TANK FILLER PIPE "PIAGGIO GENUINE PART" GILERA 50 DNA -577255- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/7/img/78087.jpg)
14 |
299913 - BOUCHON RESERVOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
15 |
GASKET OF CAP FUEL OEM PIAGGIO COMMON A LA RANGE-258160 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
17 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
18 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 2 |
|||||||||
|
19 |
623266 - TUBE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
20 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
21 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
22 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/3/img/68473.jpg)
23 |
ROBINET FUEL SCOOT OEM PIAGGIO 50-125 FLY 2005 >, LIBERTY 1998 >, 50 TYPHOON 2010 >, ZIP 2000 >, 125 VESPA LX 2005 >, VESPA GTS 2007 >/APRILIA 50-125 SPORT-CITY 2008 >-674594 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
24 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
|||||||||
|
25 |
576896 - TUBE More informationQuantity required : 1 |
|||||||||
|
26 |
CM001307 - TUYAU More informationQuantity required : 1 |
|||||||||
|
27 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 4 |
|||||||||
|
28 |
031084-BOLT More informationQuantity required : 4 |
|||||||||
|
29 |
576786 - ETRIER More informationQuantity required : 1 |
|||||||||
|
30 |
576787 - ETRIER More informationQuantity required : 1 |
|||||||||
|
31 |
576777 - RESERVOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/6/0/4/img/142604.jpg)
32 |
CLAMP SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM001906 More informationQuantity required : 1 |
|||||||||
|
33 |
CM0012096-FUEL HOSE More informationQuantity required : 1 |
|||||||||
