Vehicle Exploded View - GILERA DNA 50 DNA MY 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

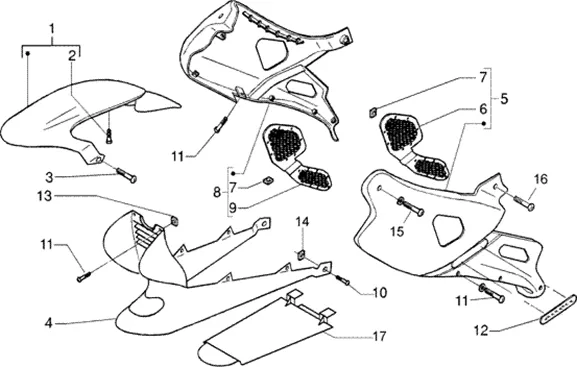

Châssis : T24 COUVERTURES LATERALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/676/DNA_MY_2005_T24.PNG)
1 |
97012100BM - GARDE BOUE AV BLANC 525 DNA RST More informationQuantity required : 1 |
|||||||||
|
1 |
97012100EE - GARDE BOUE AV DNA RST GRIS 174 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
2 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 6 |
|||||||||
|
4 |
SPOILER OEM PIAGGIO GILERA DNA 50-125 1998 > 2005-970124000C More informationQuantity required : 1 |
|||||||||
|
5 |
FRONT LEFT SIDE BODY "PIAGGIO GENUINE PART" GILERA 50-125 DNA - SAND COLOUR 174 -97011450E1- More informationQuantity required : 1 |
|||||||||
|
6 |
970115-GRILLE LEFT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
7 |
CLIPS/PLATE OEM PIAGGIO COMMON A LA RANGE-259539 More informationQuantity required : 16 |
|||||||||
|
8 |
97011750E1 - FLANC AVD DNA RST GRIS CENDRE 121 More informationQuantity required : 1 |
|||||||||
|
9 |
970118 - GRILLE DRT More informationQuantity required : 1 |
|||||||||
|
10 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
11 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/3/img/139413.jpg)
12 |
CATADIOPTRE LATERAL OEM PIAGGIO 50 ZIP, VESPA LX, 50-125 LIBERTY, 250-300-400-500 MP3: GILERA 50-125 RUNNER-58231R5 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
15 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
16 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
|
17 |
577222 - GARDE-BOUE INFERIEUR ARR. M26-C27 More informationQuantity required : 1 |
|||||||||
