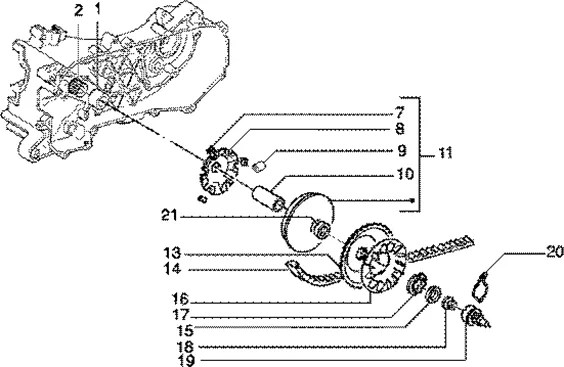

Moteur : T8 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/674/DNA_GP_Experience_1998-2005_T8.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/5/9/7/img/157597.jpg)
0 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 50 LIBERTY 4T 1998 > 2013/GILERA 50 DNA 1998 > 2005/APRILIA 50 SPORT-CITY 4T 2008 >-1R000427 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/1/6/img/157616.jpg)
0 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 50 LIBERTY 4T 1998 > 2005/APRILIA 50 SCARABEO 4T 2V 2002 > 2009, SCARABEO 4T 4V 2010 >-1R000445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/8/img/66578.jpg)
1 |
SPACER PRIMAIRE (ENTRE VILLEBREQUIN ET FLASQUE) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-479495 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/0/img/66160.jpg)
2 |
HUB/PULLEY ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
7 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER, RUNNER 1997 >/APRILIA 50 SR 2011 >-289931 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/4/img/66594.jpg)
8 |
LOGEMENT/FLASQUE GALETS OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-480227 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/0/img/73110.jpg)
9 |
GALET/ROLLER (19X15, 5) 6, 4 G OEM PIAGGIO 50 FLY 4T, LIBERTY, NRG, TYPHOON, ZIP 4T, VESPA LX 4T, PRIMAVERA, SPRINT/APRILIA 50 SPORT-CITY, SR/GILERA 50 DNA, RUNNER, STALKER (SET OF 6)-CM1102025 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/1/img/73111.jpg)
9 |
GALET/ROLLER OEM PIAGGIO 50 FLY 4T, NRG, VESPA LX 4T, VESPA SPRINT 4T, VESPA S 4/APRILIA SR/GILERA RUNNER (SET OF 6)-CM1102035 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/5/img/66595.jpg)
10 |
SPACER/CANON DE VARIATOR OEM PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD-480230 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/6/img/73116.jpg)
11 |
PULLEY MOTRICE/VARIATEUR GALET 5. 2G OEM PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD-CM110304 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/1/img/66581.jpg)
13 |
JOUE FIXE VARIATOR SCOOTER OEM PIAGGIO 50 TYPHOON 2005 >, ZIP 2000 >, FLY 2T 2005 >, LIBERTY 2005 >, NRG 2005 >, VESPA LX 2005 >, VESPA-S 2007 >/50 STALKER 2005 >/APRILIA 50 SR 2012 > 50 SXR 2021 >-479561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/7/img/149097.jpg)
14 |
DRIVE BELT SCOOTER OEM PIAGGIO 50 TYPHOON 2010 >, FLY 2T 1998 > 2011, LIBERTY 2T ET 4T 1998 >/APRILIA 50 SPORT-CITY 2T ET 4T 2008 >, SR-MOTARD 2010 >, SCARABEO 2T ET 4T/GILERA 50 DNA-1A013579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/9/img/66049.jpg)
15 |
WASHER DE PULLEY MOTRICE (23X15X0, 5) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T ET 4T-265300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/9/img/69359.jpg)
16 |
DISC VENTILATEUR DE PULLEY MOTRICE OEM PIAGGIO 50 TYPHOON 2004 >, NRG 2005 >, ZIP 2000 >, VESPA LX 2005 >, FLY 2005 >/APRILIA 50 SR 2010 > 50 SXR 2021 >/GILERA 50 STALKER 2003 >, RUNNER 2004-845611 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/5/img/70645.jpg)
17 |
OEM SCOOTER KICK OEM PIAGGIO COMMON RANGE SCOOTER 50 2T ET 4T-8770756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
18 |
NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/3/img/66633.jpg)
19 |
OEM SCOOTER KICK SCOOT OEM PIAGGIO 50 2T ET 4T FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA LX, PRIMAVERA/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-483537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
20 |
SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/0/img/73040.jpg)
21 |
SPACER PULLEY MOTRICE OEM PIAGGIO 50 25 KMH-CM100610 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
