Vehicle Exploded View - GILERA DNA 50 DNA GP Experience 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

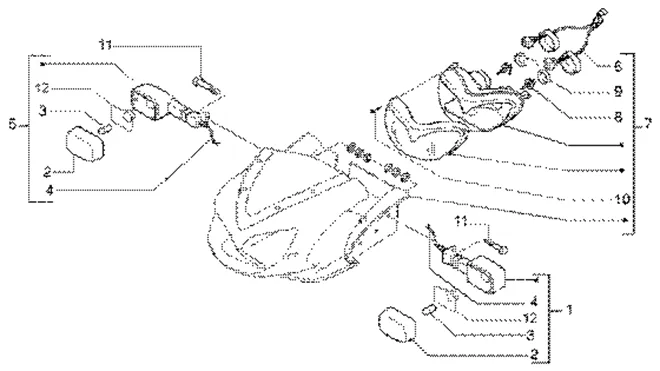

Connexions électriques : T41 PROJECTEUR-CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/674/DNA_GP_Experience_1998-2005_T41.PNG)
1 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" GILERA 50 DNA -583929- More informationQuantity required : 1 |
||||||
|
2 |
LENS FOR FLASHER - LEFT OR RIGHT -"PIAGGIO GENUINE PART" PIAGGIO GILERA 50 DNA -582244 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
3 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
|
4 |
582248-WIRING HARNESS C30 CLIGNOTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/9/8/0/img/81980.jpg)
5 |
FRONT RIGHT INDICATOR OEM PIAGGIO GILERA 50 DNA-583930 More informationQuantity required : 1 |
||||||
|
6 |
583299 - GROUPE CABLES More informationQuantity required : 1 |
||||||
|
7 |
583303000C - PHARE DNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
8 |
AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
9 |
DOOR AMPOULE OEM PIAGGIO 125-300 GTS 2008 > 2016-253327 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
10 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/7/img/67257.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-582469 More informationQuantity required : 2 |
||||||
|
12 |
|
