Vehicle Exploded View - GILERA DNA 50 DNA GP Experience 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

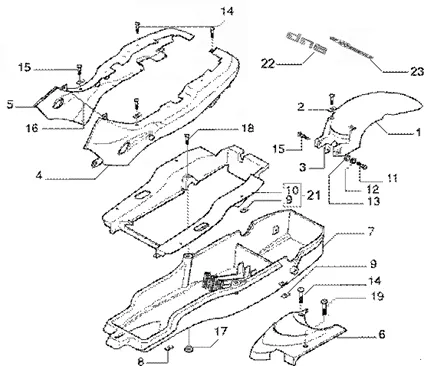

Châssis : T26 GARDE-BOUE ARRIÞRE-DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/674/DNA_GP_Experience_1998-2005_T26.PNG)
1 |
620222000C - GARDE-BOUE AR. NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
|
4 |
5766835 - FLANC ARG DNA BRUT More informationQuantity required : 1 |
||||||
|
4 |
57668350A3 - FLANC ARG BLEU 280 DNA More informationQuantity required : 1 |
||||||
|
4 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" GILERA 50-125 DNA RED 894 -57668350R7- More informationQuantity required : 1 |
||||||
|
5 |
6202020090 - LATERALE More informationQuantity required : 1 |
||||||
|
5 |
62020200A3 - LATERALE More informationQuantity required : 1 |
||||||
|
5 |
620202 - LATERALE More informationQuantity required : 1 |
||||||
|
5 |
62020200R7 - LATERALE More informationQuantity required : 1 |
||||||
|
6 |
CARB ACCESS TRAPDOOR "PIAGGIO GENUINE PART" GILERA DNA 50 1998>2006 -970214000C- More informationQuantity required : 1 |
||||||
|
7 |
970267000C - COUVETTE SELLE More informationQuantity required : 1 |
||||||
|
9 |
PLAQUETTE |
||||||
|
10 |
970268 - ENCADREMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
14 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
15 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
||||||
|
16 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
17 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
19 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 1 |
||||||
|
20 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 12 |
||||||
|
21 |
970268 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
22 |
DECAL "DNA" "PIAGGIO GENUINE PART" GILERA 50-125 DNA -621038- More informationQuantity required : 2 |
||||||
|
23 |
621042 - MONOGRAMME G.P EXPERIENCE DNA More informationQuantity required : 2 |
