Vehicle Exploded View - GILERA DNA 50 DNA GP Experience 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

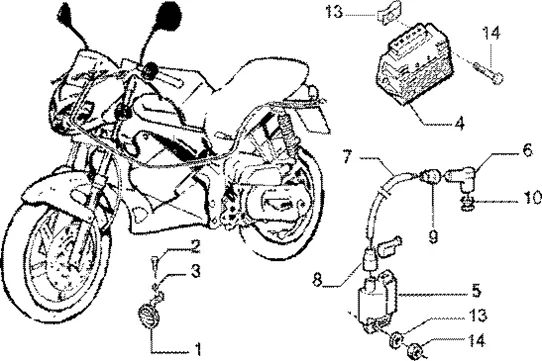

Connexions électriques : T40 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/674/DNA_GP_Experience_1998-2005_T40.PNG)
1 |
CM071808 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
1 |
AVERTISSEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/5/img/65405.jpg)
2 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-015946 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/1/img/67191.jpg)
4 |
REGULATEUR DE TENSION SCOOT OEM PIAGGIO 50 ZIP 2009 >, TYPHOON 2006 >, FLY 2005 >, LIBERTY 2006 >, NRG POWER 2005 > VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER 2005 >, RUNNER 2005 >-58096R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/0/img/67190.jpg)
5 |
BOBINE IGNITION SCOOTER OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, VESPA-S 2T/APRILIA 50 CITY 2T, SR, SCARABEO 2T/GILERA 50 DNA, STALKER, RUNNER-58095R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/0/3/img/74503.JPG)
6 |
ANTIPARASITE COMMON A LA RANGE PIAGGIO < 2005-103936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
7 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
8 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/2/img/68522.jpg)
9 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186 More informationQuantity required : 1 |
||||||
|
10 |
114164 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
12 |
241937 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
13 |
WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
14 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
