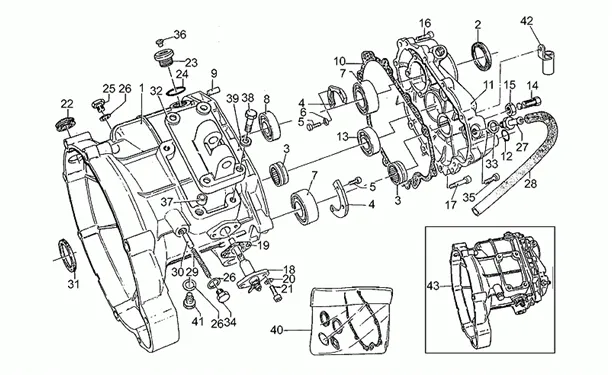

Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998

	P2R reference	130645
	Maker reference	GU30200245

GU30200245 - CARTER DE BOITE

	P2R reference	132184
	Maker reference	GU90403547

OIL SEAL (35X47X7) CASING ENGINE OEM MOTO GUZZI COMMON A LA RANGE-GU90403547

	P2R reference	132443
	Maker reference	GU92256218

BEARING (17X35X15) BOX OF SPEED OEM PIAGGIO MOTO-GUZZI 1000-1100 CALIFORNIA, 1000 LE MANS 1983 > 1994, DAYTONA 1992 > 1998, QUOTA 1992 > 2002, V10 1997 > 1999, SP 1979 > 1994, SPORT-GU92256218

	P2R reference	129225
	Maker reference	GU14213803

GU14213803-PLATE

	P2R reference	133179
	Maker reference	GU98682316

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316

	P2R reference	71912
	Maker reference	AP8152105

WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105

	P2R reference	132411
	Maker reference	GU92218424

GU92218424 - ROULEMENT AF/AS

	P2R reference	132420
	Maker reference	GU92234717

GU92234717 - ROULEMENT AS

	P2R reference	132772
	Maker reference	GU95512081

GU95512081-GOUPILLE

	P2R reference	129218
	Maker reference	GU14201110

GU14201110 - JOINT

	P2R reference	130646
	Maker reference	GU30200845

GU30200845 - COUVERCLE BOITE

	P2R reference	132218
	Maker reference	GU90706140

O-RING (13. 95X2. 92) OEM MOTO GUZZI COMMON A LA RANGE-GU90706140

	P2R reference	132392
	Maker reference	GU92201417

GU92201417 - ROULEMENT AP

	P2R reference	129244
	Maker reference	GU14237800

GU14237800-SCREW

	P2R reference	132477
	Maker reference	GU92602512

GU92602512 - ECROU BAS M12X1,25

	P2R reference	133137
	Maker reference	GU98622325

GU98622325-SCREW M6X25

	P2R reference	141235
	Maker reference	GU98620335

SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335

	P2R reference
	Maker reference	GU12207200

Interr.tém.libre

	P2R reference	164732
	Maker reference	GU12207700

GU12207700 - JOINT

	P2R reference	71912
	Maker reference	AP8152105

WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105

	P2R reference	133057
	Maker reference	GU98370614

SCREW BTR HEAD BOMBEE (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98370614

	P2R reference	132577
	Maker reference	GU93180220

CAP RUBBER REGARD OEM MOTO GUZZI COMMON A LA RANGE-GU93180220

	P2R reference	129113
	Maker reference	GU12022600

CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600

	P2R reference	132224
	Maker reference	GU90706203

O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203

	P2R reference	132783
	Maker reference	GU95980214

GU95980214 - BOUCHON NIVEAU HUILE

	P2R reference	129097
	Maker reference	GU10528900

GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900

	P2R reference	129219
	Maker reference	GU14204955

GEARBOX OIL BREATHER VALVE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNI, 850 T3, 1000 DAYTONA, LE MANS, QUOTA, SP, STRADA, V10 -GU14204955

	P2R reference	101345
	Maker reference	GU00823956080

HOSE DE VALVE RENIFLARD 12, 5X7, 8 5/16 " OEM MOTO GUZZI COMMON A LA RANGE-GU00823956080

	P2R reference	132638
	Maker reference	GU94321067

GU94321067-RETOUR LEVER DEMARRAGE

	P2R reference	131917
	Maker reference	GU55234700

GU55234700-ENCLIQUETAGE

	P2R reference	68807
	Maker reference	82899R

OIL SEAL (35X47X7) SHAFT DE REAR WHEEL OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, VESPA-S, X8 STREET/GILERA 125 RUNNER, DNA/APRILIA 125 MOJITO-82899R

	P2R reference	164921
	Maker reference	GU30202345

GU30202345 - SUPPORT CARTER B.VITESSES

	P2R reference	129125
	Maker reference	GU12154200

WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200

	P2R reference	132786
	Maker reference	GU95980610

GU95980610-CAP

	P2R reference	164734
	Maker reference	GU98822325

GU98822325 - VIS

	P2R reference	132578
	Maker reference	GU93180245

CAP OBTURATEUR ORINE MOTO GUZZI COMMON A LA RANGE-GU93180245

	P2R reference	132337
	Maker reference	GU91181006

GU91181006 - DOUILLE

	P2R reference	132895
	Maker reference	GU98054422

GU98054422-SCREW

	P2R reference	132656
	Maker reference	GU95004208

GU95004208 - RONDELLE

	P2R reference	164922
	Maker reference	GU30999100

GU30999100 - JOINTS-JEU

	P2R reference	131022
	Maker reference	GU31003766

CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766

	P2R reference	130690
	Maker reference	GU30424660

GU30424660-BRACKET

	P2R reference
	Maker reference	GU01695050

Boîte de vitesses cpl.

	P2R reference
	Maker reference	GU01695051

BOITE DE VITESSE

	P2R reference	164923
	Maker reference	GU400032802600

GU400032802600 - BOITE DE VITESSES CPL.
