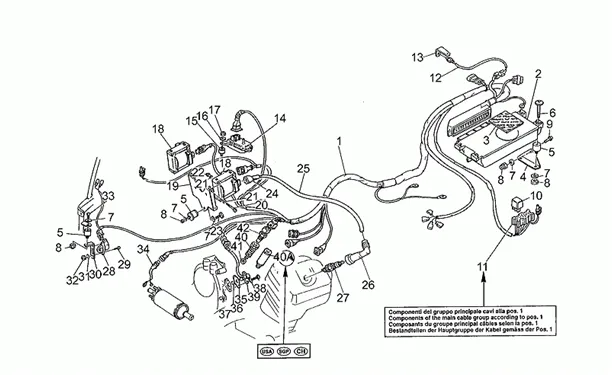

Chassis : 33.23 ALLUMAGE ÉLECTRONIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.23.PNG)
1 |
|
||||||
|
2 |
Centrale électronique |
||||||
|
2 |
Centrale électronique |
||||||
|
3 |
GU01732001-TARGHETTA ANTIMANOMISSIONE More informationQuantity required : 1 |
||||||
|
4 |
Plaque support |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
5 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 8 |
||||||
|
6 |
GU98230616-SCREW More informationQuantity required : 4 |
||||||
|
7 |
GU95000206-WASHER More informationQuantity required : 1 |
||||||
|
8 |
GU92630106-NUT M6X1 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
9 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
9 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
10 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 2 |
||||||
|
11 |
GU30732400-BRACKET RELAIS More informationQuantity required : 2 |
||||||
|
12 |
GU29727860 - TEMOIN COMPLET More informationQuantity required : 1 |
||||||
|
13 |
GU30732900 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
GU29727061-DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
|
15 |
GU93211315 - SILENT BLOCK More informationQuantity required : 3 |
||||||
|
16 |
GU95100025 - RONDELLE More informationQuantity required : 3 |
||||||
|
17 |
GU92601004-NUT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
18 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
19 |
GU01407460-BRACKET BOBINA More informationQuantity required : 1 |
||||||
|
20 |
|
||||||
|
21 |
GU95004204 - RONDELLE More informationQuantity required : 8 |
||||||
|
22 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
24 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 2 |
||||||
|
25 |
GU01718350-CABLE ALTA TENSIONE More informationQuantity required : 2 |
||||||
|
26 |
GU30717402 - CAPUCHON BOUGIE More informationQuantity required : 2 |
||||||
|
27 |
GU30717002 - BOUGIE NGK DR9EA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
28 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 1 |
||||||
|
29 |
GU98610110-SCREW More informationQuantity required : 4 |
||||||
|
30 |
GU30728230-BRACKET DETECTEUR More informationQuantity required : 1 |
||||||
|
31 |
GU95120032-WASHER More informationQuantity required : 2 |
||||||
|
32 |
GU92601003 - ECROU More informationQuantity required : 2 |
||||||
|
33 |
GU98230610 - VIS More informationQuantity required : 1 |
||||||
|
34 |
Câblage pompe essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
35 |
SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
36 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
37 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
|
38 |
GU98622210-SCREW M5X10 More informationQuantity required : 2 |
||||||
|
39 |
GU95004205-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
40 |
BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330 More informationQuantity required : 1 |
||||||
|
40 |
Support détecteur |
||||||
|
41 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
42 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
