Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

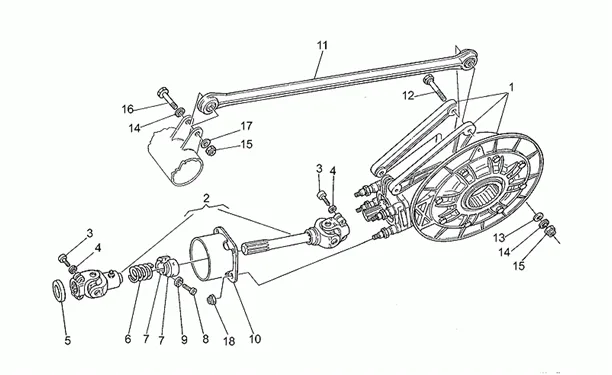

Chassis : 33.30 CARDAN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.30.PNG)
1 |
GU01350250 - CARTER DE TRANSMISSION More informationQuantity required : 1 |
||||||
|
2 |
GU30329502 - ARBRE DE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/3/5/img/133235.jpg)
3 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-GU98832430 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
4 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
5 |
GU30334600 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
GU28037460 - RESSORT More informationQuantity required : 1 |
||||||
|
7 |
Etrier |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
8 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98612216 More informationQuantity required : 2 |
||||||
|
9 |
GU29217960-WASHER 5, 9X3X0, 8 More informationQuantity required : 2 |
||||||
|
10 |
GU01358300 - COUVERCLE More informationQuantity required : 1 |
||||||
|
11 |
Barre de réaction cpl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/7/8/img/130678.jpg)
12 |
SCREW - (M10X69) FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, V10, 1100 SPORT, V11 -GU30357800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
13 |
WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
14 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/8/img/132508.jpg)
15 |
NUT AUTOBLOQUANT/NYLSTOP (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92630410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/5/5/1/img/101551.jpg)
16 |
SCREW TH (10X59) OEM PIAGGIO COMMON A LA RANGE-GU01357731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/2/4/img/132724.jpg)
17 |
WASHER/SPACER (10X30X4) OEM PIAGGIO COMMON A LA RANGE-GU95100303 More informationQuantity required : 1 |
||||||
|
18 |
GU92630506 - ECROU AUTOBLOQU.M6X1 More informationQuantity required : 4 |
