Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

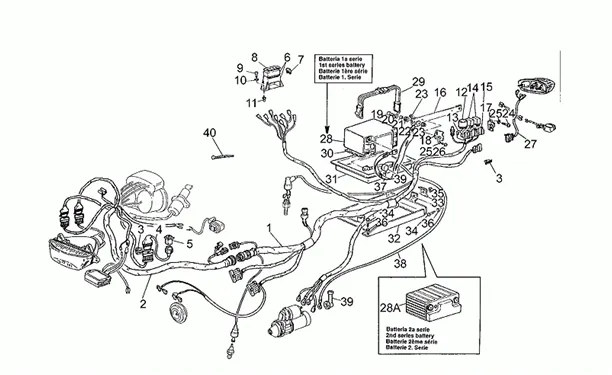

Chassis : 33.09 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.09.PNG)
1 |
GU01747100 - IMPIANTO ELETTRICO More informationQuantity required : 1 |
||||||
|
2 |
Câblage tableau de bord |
||||||
|
3 |
GU30922260-CLIP More informationQuantity required : 2 |
||||||
|
4 |
Câblage feu détresse |
||||||
|
5 |
Turn indicator switch |
||||||
|
6 |
GU37743005-BOX A FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
7 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 6 |
||||||
|
8 |
"Décalcomanie ""schema fusibili""" |
||||||
|
9 |
GU98622210-SCREW M5X10 More informationQuantity required : 2 |
||||||
|
10 |
GU95004205-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/2/img/132592.jpg)
11 |
BUSH ANTI VIBRATION (M5) OEM PIAGGIO COMMON A LA RANGE-GU93231605 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
12 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
13 |
GU30756100-BRACKET More informationQuantity required : 1 |
||||||
|
14 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 2 |
||||||
|
15 |
GU30732400-BRACKET RELAIS More informationQuantity required : 2 |
||||||
|
16 |
Support relais |
||||||
|
17 |
GU304771015-FLANGE RIGHT More informationQuantity required : 1 |
||||||
|
18 |
GU30477200-PLATE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/2/img/132972.jpg)
19 |
SCREW FLANGE BTR (6X22) OEM PIAGGIO COMMON A LA RANGE-GU98230622 More informationQuantity required : 1 |
||||||
|
20 |
GU95100123-WASHER More informationQuantity required : 1 |
||||||
|
21 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
22 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 2 |
||||||
|
23 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
|
24 |
GU98230619-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
25 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
26 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
26 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
27 |
Câblage feu AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/0/img/101940.jpg)
28 |
BATTERY 12V 13 AH "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA 2003>2009, 1100 SPORT 1996>1999, V11 1999>2005, 1000 V10 1997>1999, QUOTA 1998>2002 -GU01704501- More informationQuantity required : 1 |
||||||
|
29 |
GU01705500 - ELASTICO FISSAGGIO BATTERIA More informationQuantity required : 1 |
||||||
|
30 |
GU01706800 - TAMPONE More informationQuantity required : 1 |
||||||
|
31 |
Support batterie |
||||||
|
32 |
Support batterie |
||||||
|
33 |
Plaquette |
||||||
|
34 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 3 |
||||||
|
34 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 3 |
||||||
|
35 |
GU92630106-NUT M6X1 More informationQuantity required : 1 |
||||||
|
36 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 3 |
||||||
|
37 |
GU28747960-FILS DE MASSE More informationQuantity required : 1 |
||||||
|
38 |
Cable |
||||||
|
39 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
40 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
40 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 1 |
