Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

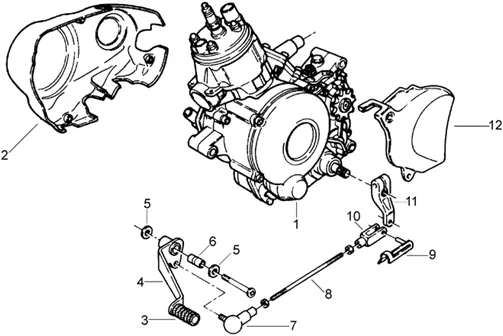

Moteur : 29.25 MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_29.25.PNG)
1 |
AP8276002 - COPERCHIO VOLANO V.GRIGIO More informationQuantity required : 1 |
||||||
|
2 |
Carter freinf.all.+décal.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
3 |
RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189 More informationQuantity required : 1 |
||||||
|
4 |
Levier vitesses chr.; |
||||||
|
5 |
AP8220299 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
6 |
AP8221125 - PIVOT LEVIER .B.VITES. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
7 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
|
8 |
AP8232643-ROD RENVOI BO? TE DE VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
9 |
AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301 More informationQuantity required : 1 |
||||||
|
10 |
Fourche lev.b de vitesse |
||||||
|
11 |
AP8232656 - BIELLETTE RENV. BOITE VITES.; More informationQuantity required : 1 |
||||||
|
12 |
Carter pignon, gris; |
