Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999 APRILIA

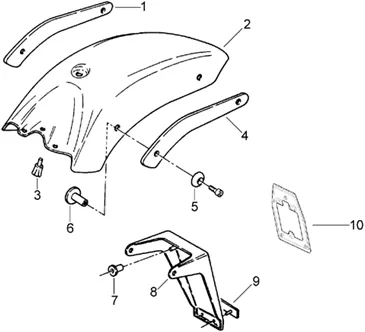

Chassis : 28.16 CARROSSERIE POSTERIEURE
Carrosserie posterieure
Search
AP8232652 - POIGNEE D CHROMEE;

1
P2R reference P2R reference 58024
Maker reference Maker reference AP8232652

AP8232652 - POIGNEE D CHROMEE;

More information

Quantity required : 1

Garde-boue arrière vert;

2
P2R reference P2R reference
Maker reference Maker reference AP8226185

Garde-boue arrière vert;

Garde-boue arrière gris;

2
P2R reference P2R reference
Maker reference Maker reference AP8226211

Garde-boue arrière gris;

Garde-boue AR. peint violet;

2
P2R reference P2R reference
Maker reference Maker reference AP8226258

Garde-boue AR. peint violet;

Garde-boue arrière noir

2
P2R reference P2R reference
Maker reference Maker reference AP8226260

Garde-boue arrière noir

Garde-boue arrière bleu/rouge

2
P2R reference P2R reference
Maker reference Maker reference AP8226270

Garde-boue arrière bleu/rouge

Garde-boue arrière noir/vert

2
P2R reference P2R reference
Maker reference Maker reference AP8226274

Garde-boue arrière noir/vert

Garde-boue arrière rouge;

2
P2R reference P2R reference
Maker reference Maker reference AP8226324

Garde-boue arrière rouge;

Garde-boue arrière noir;

2
P2R reference P2R reference
Maker reference Maker reference AP8226327

Garde-boue arrière noir;

Garde-boue arrière bleu;

2
P2R reference P2R reference
Maker reference Maker reference AP8226374

Garde-boue arrière bleu;

Garde-boue arrière rouge;

2
P2R reference P2R reference
Maker reference Maker reference AP8226388

Garde-boue arrière rouge;

Garde-boue AR. peint orange;

2
P2R reference P2R reference
Maker reference Maker reference AP8226440

Garde-boue AR. peint orange;

Gard-b AR rouge+décal.;

2
P2R reference P2R reference
Maker reference Maker reference AP8226555

Gard-b AR rouge+décal.;

Gard-b AR noir+décal;

2
P2R reference P2R reference
Maker reference Maker reference AP8226557

Gard-b AR noir+décal;

AP8120317 - RIVET EN PLASTIQUE NOIR

3
P2R reference P2R reference 71392
Maker reference Maker reference AP8120317

AP8120317 - RIVET EN PLASTIQUE NOIR

More information

Quantity required : 3

Poignée G chromée;

4
P2R reference P2R reference
Maker reference Maker reference AP8232653

Poignée G chromée;

Bouchon

5
P2R reference P2R reference
Maker reference Maker reference AP8220188

Bouchon

BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128

6
P2R reference P2R reference 72297
Maker reference Maker reference AP8221128

BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128

More information

Quantity required : 4

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275

7
P2R reference P2R reference 46595
Maker reference Maker reference AP8120275

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275

More information

Quantity required : 2

Porte-plaque noir;

8
P2R reference P2R reference
Maker reference Maker reference AP8226187

Porte-plaque noir;

Porte-plaque blanc;

8
P2R reference P2R reference
Maker reference Maker reference AP8226203

Porte-plaque blanc;

Porte-plaque gris;

8
P2R reference P2R reference
Maker reference Maker reference AP8226377

Porte-plaque gris;

AP8112202 - CATADIOPTRE ARRIERE

9
P2R reference P2R reference 97061
Maker reference Maker reference AP8112202

AP8112202 - CATADIOPTRE ARRIERE

More information

Quantity required : 1

Support plaque;

10
P2R reference P2R reference
Maker reference Maker reference AP8234069

Support plaque;

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

11
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

More information

Quantity required : 4

SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164

12
P2R reference P2R reference 71827
Maker reference Maker reference AP8150164

SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164

More information

Quantity required : 4
