Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

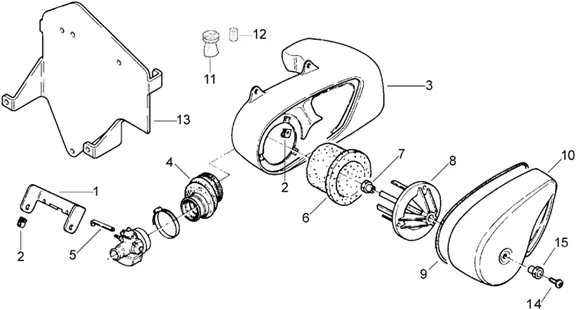

Chassis : 28.22 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_28.22.PNG)
1 |
Support inf. corps filtre; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
2 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
|
3 |
Corps filtre; |
||||||
|
3 |
Corps filtre; |
||||||
|
4 |
Manchon d'aspiration |
||||||
|
5 |
Levier; |
||||||
|
6 |
Filtre air; |
||||||
|
7 |
Écrou couvercle corps filtre |
||||||
|
8 |
Support filtre |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
9 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 1 |
||||||
|
9 |
AP8220391-GASKET BODY FILTER More informationQuantity required : 1 |
||||||
|
10 |
Couvercle corps filtre; |
||||||
|
11 |
Reniflard corps filtre |
||||||
|
12 |
Filtre pour reniflard |
||||||
|
13 |
Support AR. corps filtre; |
||||||
|
14 |
AP8150406 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
15 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 1 |
