Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999 APRILIA

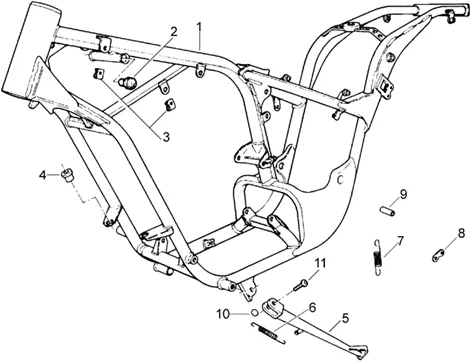

Chassis : 28.01 CHÂSSIS ET BÉQUILLE
Châssis et béquille
Search
Châssis, vert;

1
P2R reference P2R reference
Maker reference Maker reference AP8232634

Châssis, vert;

Châssis, gris;

1
P2R reference P2R reference
Maker reference Maker reference AP8232715

Châssis, gris;

Châssis, violet;

1
P2R reference P2R reference
Maker reference Maker reference AP8232826

Châssis, violet;

Châssis, bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8232845

Châssis, bleu;

Châssis, noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8232849

Châssis, noir;

Châssis, rouge;

1
P2R reference P2R reference
Maker reference Maker reference AP8232922

Châssis, rouge;

Châssis, noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8232928

Châssis, noir;

Châssis, bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8232961

Châssis, bleu;

Châssis, rouge;

1
P2R reference P2R reference
Maker reference Maker reference AP8232966

Châssis, rouge;

Châssis, orange;

1
P2R reference P2R reference
Maker reference Maker reference AP8232997

Châssis, orange;

Châssis, noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8235061

Châssis, noir;

Châssis, gris;

1
P2R reference P2R reference
Maker reference Maker reference AP8235063

Châssis, gris;

Caoutchouc réserv.

2
P2R reference P2R reference
Maker reference Maker reference AP8120221

Caoutchouc réserv.

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

3
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 10

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275

4
P2R reference P2R reference 46595
Maker reference Maker reference AP8120275

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275

More information

Quantity required : 2

Béquille latérale;

5
P2R reference P2R reference
Maker reference Maker reference AP8232679

Béquille latérale;

AP8121712 - RESS.HEL.CYL.TRACT.

6
P2R reference P2R reference 46924
Maker reference Maker reference AP8121712

AP8121712-RESS. HEL. CYL. TRACT.

More information

Quantity required : 1

AP8221157 - RESS.RETOUR BEQ.INT.

6
P2R reference P2R reference 57009
Maker reference Maker reference AP8221157

AP8221157 - RESS.RETOUR BEQ.INT.

More information

Quantity required : 1

Ress.retour béq.ext.

7
P2R reference P2R reference
Maker reference Maker reference AP8221158

Ress.retour béq.ext.

AP8134266 - PLAQUETTE RETOUR BEQUILLE;

8
P2R reference P2R reference 48907
Maker reference Maker reference AP8134266

AP8134266-PLATE RETOUR STAND

More information

Quantity required : 1

AP8221055 - ENTRETOISE

9
P2R reference P2R reference 56995
Maker reference Maker reference AP8221055

AP8221055-SPACER

More information

Quantity required : 1

WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210

10
P2R reference P2R reference 71840
Maker reference Maker reference AP8150210

WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210

More information

Quantity required : 1

Vis

11
P2R reference P2R reference
Maker reference Maker reference AP8152132

Vis
