Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

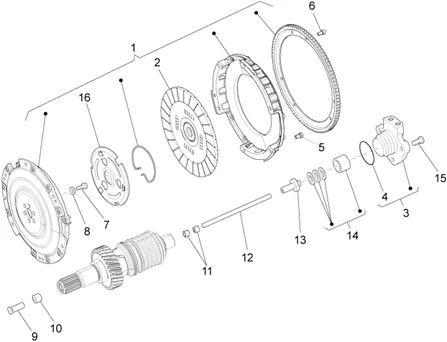

Moteur : 03.230 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_03.230.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/9/9/4/img/97994.jpg)
1 |
KIT CLUTCH OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT, 1400 CALIFORNIA, AUDACE-2A000107 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/6/7/img/101267.jpg)
2 |
DISC CLUTCH Ø200 MM OEM PIAGGIO MOTO-GUZZI 1200 SPORT, GRISO, NORGE, STELVIO, 1400 CALIFORNIA-B064100 More informationQuantity required : 1 |
||||||
3 |
85220R-CYLINDER More informationQuantity required : 1 |
||||||
|
4 |
B064271-(*) ANELLO DI TENUTA (O-RING) * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/6/8/img/99868.jpg)
5 |
SCREW BTR (7X16) FOR MECANISME CLUTCH OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, GRISO, 1400 CALIFORNIA, AUDACE-976535 More informationQuantity required : 6 |
||||||
|
6 |
884044-SCREW TBEI M6X10 PREIMPREGNATA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/5/6/img/99856.jpg)
7 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-976481 More informationQuantity required : 6 |
||||||
|
8 |
976484-ROSETTA CONICA ELASTICA 8 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/9/3/0/img/100930.jpg)
9 |
BUTEE DE FRICTION CONTROL D'EMBRAYAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI (ENGINE 8 SOUPAPES)-B013036 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/7/6/img/99876.jpg)
10 |
BUSH CLUTCH OEM MOTO GUZZI COMMON A LA RANGE-976564 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/6/img/129196.jpg)
11 |
BUSH CLUTCH OEM MOTO-GUZZI COMMON A LA RANGE-GU14085900 More informationQuantity required : 2 |
||||||
|
12 |
976593-ASTA COMANDO FRIZIONE L183 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/9/1/img/99891.jpg)
12 |
ROD OF CONTROL CLUTCH (L184, 5 MM) OEM PIAGGIO MOTO-GUZZI 1200 STELVIO, NORGE, GRISO, SPORT, 1400 CALIFORNIA, AUDACE, ELDORADO-976594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/9/2/img/99892.jpg)
12 |
ROD OF CONTROL CLUTCH (L186 MM) OEM PIAGGIO MOTO-GUZZI 1200 STELVIO, NORGE, GRISO, SPORT, 1400 CALIFORNIA, AUDACE, ELDORADO-976595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/9/3/img/99893.jpg)
12 |
ROD OF CONTROL CLUTCH (L187, 5 MM) OEM PIAGGIO MOTO-GUZZI 1200 STELVIO, NORGE, GRISO, SPORT, 1400 CALIFORNIA, AUDACE, ELDORADO-976596 More informationQuantity required : 1 |
||||||
|
12 |
B0630111-ASTA COMANDO FRIZIONE L 185 More informationQuantity required : 1 |
||||||
|
12 |
B063012-ASTA COMANDO FRIZIONE L 185. 5 More informationQuantity required : 1 |
||||||
|
13 |
B013037-CORPO INTERNO GUIDA REGGISPINTA FRIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/1/6/img/99916.jpg)
14 |
KIT ROULEMENTS DE CONTROL CLUTCH OEM PIAGGIO MOTO-GUZZI 1200 SPORT, GRISO, NORGE, STELVIO, 1400 CALIFORNIA-976696 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
15 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/9/8/img/127798.jpg)
16 |
PLATEAU OF PRESSURE CLUTCH OEM MOTO GUZZI 1400 AUDACE, CALIFORNIA, ELDORADO 2012 >-2A000072 More informationQuantity required : 1 |
