Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

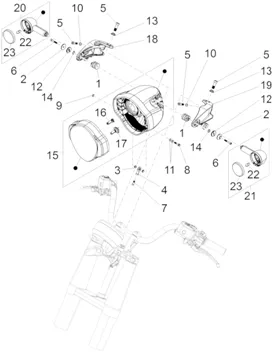

Feux - instruments : 08.010 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_08.010.PNG)
1 |
887698-SPACER ROTAZIONE FANALE ANT More informationQuantity required : 2 |
||||||
|
2 |
2B000141-BUSSOLA FORATA More informationQuantity required : 2 |
||||||
|
3 |
GU91120605-BUSH More informationQuantity required : 2 |
||||||
|
4 |
887921-TESTA A SNODO M6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
5 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
6 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
7 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
|
9 |
GU92630206-NUT M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
10 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
11 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
12 |
887697-RONDELLA CURVATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.jpg)
13 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE MOTO-AP8150536 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
14 |
CLIPS/CIRCLIPS (9. 3) DE PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-006410 More informationQuantity required : 2 |
||||||
|
15 |
887453-FANALE ANTERIORE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
16 |
AMPOULE/LAMPE 12V 55W H7 OEM PIAGGIO COMMON A LA RANGE-294353 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/0/img/66270.jpg)
17 |
AMPOULE/LAMPE 12V 55W H3 OEM PIAGGIO COMMON A LA RANGE-294278 More informationQuantity required : 1 |
||||||
|
18 |
2B000151-BRACKET FANALE ANT DX More informationQuantity required : 1 |
||||||
|
19 |
2B000152-BRACKET FANALE ANT SX More informationQuantity required : 1 |
||||||
|
20 |
B063028-INDICATORE DIREZIONE ANT DX More informationQuantity required : 1 |
||||||
|
21 |
B063029-INDICATORE DIREZIONE ANT SX * More informationQuantity required : 1 |
||||||
|
22 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 1 |
||||||
|
23 |
2D000007-TRASPARENTE PER FRECCIA ANTERIORE More informationQuantity required : 2 |
