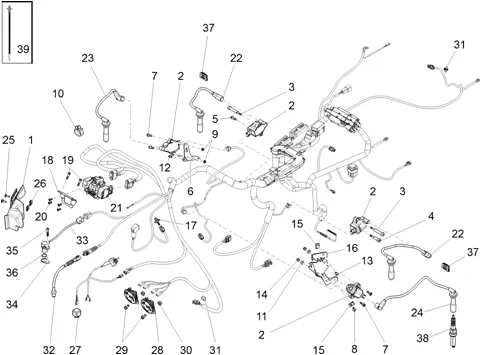

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)
Dispositifs électriques : 11.010 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_11.010.PNG)
1 |
887955-HOUSING CONNECTEUR LUMIERE OEM MOTO GUZZI AUDACE 140 2015 > 2017, CALIFORNIA 1400 2012 > 2018, ELDORADO 1400 2015 > 2017 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
2 |
BOBINE IGNITION OEM PIAGGIO 125 FLY3 SOUPAPES, LIBERTY 3 SOUPAPES, VESPA LX 3 SOUPAPES, 125-350 YOURBAN, BEVERLY, X-10, V7, V9, V85 2017 >-641901 More informationQuantity required : 4 |
|||||||||
|
3 |
B063162-COLONNETTA SUPP COVER More informationQuantity required : 2 |
|||||||||
|
4 |
B063844-COLONNETTA FILETTATA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
5 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
|||||||||
|
6 |
B063508-BRACKET BOBINA AT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
7 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
|||||||||
|
8 |
976614-SCREW TCCCE IX M5X15 More informationQuantity required : 2 |
|||||||||
|
9 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/8/img/67938.jpg)
10 |
CLIPS SPRING (D22) OEM PIAGGIO COMMON A LA RANGE-641652 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
11 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
13 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
|||||||||
|
16 |
B063742-BRACKET BOBINA AT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
17 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
|||||||||
|
18 |
B063015-PLATE BRACKET HGS More informationQuantity required : 1 |
|||||||||
|
19 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
20 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/4/8/img/72848.jpg)
21 |
SENSOR POSITION THROTTLE OEM PIAGGIO APRILIA DORSODURO, SHIVER, TUONO, RSV-4/MOTO-GUZZI CALIFORNIA, AUDACE, ELDORADO, MP3 500 2021-B044414 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/8/8/img/127988.jpg)
22 |
CABLE HT COMPLETE ORIGNE MOTO GUZZI 1400 AUDACE, CALIFORNIA, ELDORADO, MGX21-2D000182 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/8/7/img/127987.jpg)
23 |
CABLE HT COMPLETE ORIGNE MOTO GUZZI 1400 AUDACE, CALIFORNIA, ELDORADO, MGX21-2D000181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/8/6/img/127986.jpg)
24 |
CABLE HT COMPLETE ORIGNE MOTO GUZZI 1400 AUDACE, CALIFORNIA, ELDORADO, MGX21-2D000180 More informationQuantity required : 1 |
|||||||||
|
25 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
25 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
|
26 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
27 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
|||||||||
|
28 |
890979-HORN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
29 |
SCREW BTR SPECIALE HEAD BOMBEE (6X16) OEM MOTO GUZZI COMMON A LA RANGE-GU98370616 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
30 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
|
31 |
890760-BRACKET More informationQuantity required : 2 |
|||||||||
|
32 |
887421-SENSORE TEMPERATURA TESTA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
33 |
SENSOR IGNITION/PHASE TOURS OEM PIAGGIO 400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP-6389915 More informationQuantity required : 1 |
|||||||||
|
34 |
B063592-PIASTRINA REGISTRO SENSORE GIRI More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
35 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
36 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
|||||||||
|
37 |
B063131-GOMMINO CAVI AT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/6/img/99296.jpg)
38 |
SPARK PLUG LMAR8F-9 OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA, AUDACE, ELDORADO-887016 More informationQuantity required : 4 |
|||||||||
|
39 |
B064017-FASCETTA CON TESTA A FRECCIA E VENTOSA More informationQuantity required : 1 |
|||||||||
