Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

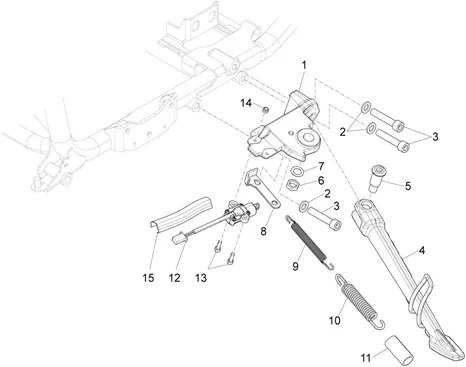

Chassis : 01.030 BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_01.030.PNG)
1 |
B063430-PLATE CAVALLETO SIDE COMPLETA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
2 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/7/img/133167.jpg)
3 |
SCREW BTR (10X45) OEM PIAGGIO COMMON A LA RANGE-GU98680545 More informationQuantity required : 3 |
||||||
|
4 |
B063786 - ASS. CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
|
5 |
B063444-PERNO ROTAZIONE CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/5/img/71915.jpg)
6 |
NUT TH (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-AP8152135 More informationQuantity required : 1 |
||||||
|
7 |
GU95129240-WASHER More informationQuantity required : 1 |
||||||
|
8 |
851550-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
9 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 1 |
||||||
|
10 |
AP8121015-RESS. RETOUR BEQ. EXT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
11 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/7/img/67837.jpg)
12 |
CONTACTEUR DE SIDE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-639542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
13 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98612216 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
|
15 |
GU00823923140-GUAINA NERA D16 S0, 4 VETR More informationQuantity required : 1 |
