Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

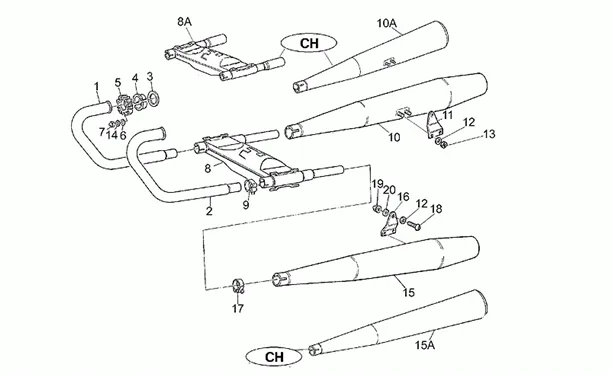

Chassis : 33.44 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.44.PNG)
1 |
Tuyau échappement d. |
||||||
|
2 |
Tuyau échappement gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
GASKET EXHAUST SORTIE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90718370 More informationQuantity required : 2 |
||||||
|
4 |
GU14121200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
7 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 4 |
||||||
|
8 |
CHAMBRE DE DETENDE |
||||||
|
8 |
Chambre de détente C295 |
||||||
|
9 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
10 |
GU17123062-SILENCER D S17 More informationQuantity required : 1 |
||||||
|
10 |
Silencieux D |
||||||
|
11 |
PLAQUE |
||||||
|
12 |
GU95004208 - RONDELLE More informationQuantity required : 4 |
||||||
|
13 |
GU92630508 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
14 |
GU95007208 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
SILENCIEUX |
||||||
|
15 |
GU30122960-SILENCER G More informationQuantity required : 1 |
||||||
|
16 |
Plaque |
||||||
|
17 |
GU29123450-CLAMP More informationQuantity required : 2 |
||||||
|
18 |
GU98230835 - VIS M8X35 More informationQuantity required : 2 |
||||||
|
18 |
GU98230841-SCREW M8X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
19 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660208 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
20 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 2 |
