Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

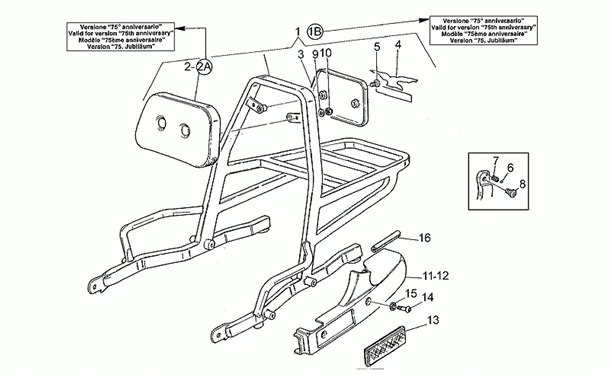

Chassis : 33.24 PORTE-BAGAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.24.PNG)
1 |
|
||||||
|
1 |
GU30466562 - PORTE-BAGAGES BASC.CPL. More informationQuantity required : 1 |
||||||
|
1 |
Porte-bagages fixe cpl. |
||||||
|
2 |
Coussin cuir Waterproof |
||||||
|
2 |
GU03468000-CUSCINO POGGIASCHIENA More informationQuantity required : 1 |
||||||
|
3 |
GU03468200-COVER More informationQuantity required : 1 |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
|
5 |
GU98230619-SCREW More informationQuantity required : 2 |
||||||
|
6 |
GU92295704 - BILLE More informationQuantity required : 1 |
||||||
|
7 |
GU94321007-SPRING More informationQuantity required : 1 |
||||||
|
8 |
GU03468100-SCREW IX M8X1, 25 More informationQuantity required : 2 |
||||||
|
9 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
GU92601206 - ECROU More informationQuantity required : 2 |
||||||
|
11 |
GU30466961 - PROTECT.DTE More informationQuantity required : 1 |
||||||
|
12 |
GU30467361 - PROTECT.GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/3/0/img/131330.jpg)
13 |
CATADIOPTRE REAR OEM PIAGGIO MOTO-GUZZI 1100 V11-GU31781565 More informationQuantity required : 2 |
||||||
|
13 |
GU31781665-CATADIOPTRE, AMBRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98370614 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
15 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
16 |
GASKET PVC OEM MOTO GUZZI COMMON A LA RANGE-GU00823931080 More informationQuantity required : 1 |
