Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

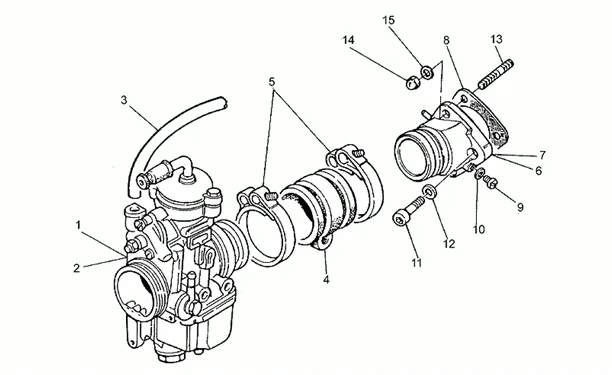

Chassis : 33.35 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.35.PNG)
1 |
Carburateur droit PHF 36DD |
||||||
|
1 |
GU30112662 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
1 |
Carburateur droit PHF 36DD |
||||||
|
2 |
GU30112661 - CARBURATEUR GAUCHE PHF 36DS More informationQuantity required : 1 |
||||||
|
2 |
Carburateur gauche PHF 36DS |
||||||
|
2 |
|
||||||
|
3 |
TUYAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/9/img/129209.jpg)
4 |
CARBURETTOR SLEEVE OEM PIAGGIO MOTO-GUZZI 850 LE MANS 1981 > 1984, T5 1985 > 1988, 1000 CALIFORNIA 1983 > 1997, SP 1989 > 1994, STRADA 1993 > 1994-GU14114350 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
5 |
CLAMP (57X59, 5X10) ORIGNE PIAGGIO COMMON A LA RANGE-GU93305057 More informationQuantity required : 4 |
||||||
|
6 |
Collecteur aspiration dte |
||||||
|
7 |
Collecteur aspiration gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/9/2/img/125592.jpg)
8 |
GU28115560 - JOINT MOTO-GUZZI More informationQuantity required : 2 |
||||||
|
9 |
GU98310610-SCREW More informationQuantity required : 2 |
||||||
|
10 |
GU95100116-WASHER More informationQuantity required : 2 |
||||||
|
11 |
GU98622325-SCREW M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
|
13 |
GU96506039 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
14 |
GU92781062-NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
15 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 4 |
