Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

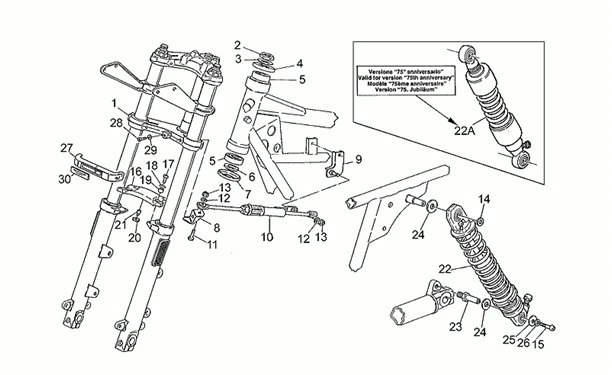

Chassis : 33.29 SUSPENSION AVANT/ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.29.PNG)
1 |
Fourche AV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/3/6/img/129436.jpg)
2 |
NUT SERRAGE PLATINE SUPERIEURE DE FORK OEM PIAGGIO MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, 1000 LE-MANS, GT, CALIFORNIA-GU18513460 More informationQuantity required : 1 |
||||||
|
3 |
GU18513560-WASHER CAP FOURREAU More informationQuantity required : 1 |
||||||
|
4 |
GU14494600 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
5 |
BEARING DE COLONNE DE STEERING OEM PIAGGIO MOTO-GUZZI 750 BREVIA, NEVADA, V7, 940 BELLAGIO, 1000 DAYTONA, LE-MANS, V10, 1100 V11, CALIFORNIA, SPORT-GU92249225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
6 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
7 |
PROTECTOR-POUSSIERE DE SET OF STEERING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU14517000 More informationQuantity required : 1 |
||||||
|
8 |
GU29531850 - PLAQUE More informationQuantity required : 1 |
||||||
|
9 |
GU29531050 - PLAQUE More informationQuantity required : 1 |
||||||
|
10 |
GU03530270 - AMORTISSEUR DE DIRECTION More informationQuantity required : 1 |
||||||
|
11 |
GU98054325 - VIS More informationQuantity required : 1 |
||||||
|
12 |
GU95000206-WASHER More informationQuantity required : 3 |
||||||
|
13 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
14 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 4 |
||||||
|
15 |
GU98230816-SCREW More informationQuantity required : 2 |
||||||
|
16 |
Plaque de stabilisation |
||||||
|
17 |
GU98230816-SCREW More informationQuantity required : 4 |
||||||
|
18 |
GU90706092-O-RING More informationQuantity required : 8 |
||||||
|
19 |
GU29436450-BUSH More informationQuantity required : 4 |
||||||
|
20 |
GU66478610-WASHER NYLON 6X17X1 More informationQuantity required : 1 |
||||||
|
21 |
Pivot |
||||||
|
22 |
GU30550276 - AMORTISSEUR AR More informationQuantity required : 2 |
||||||
|
23 |
Pivot |
||||||
|
24 |
GU95100535-WASHER More informationQuantity required : 4 |
||||||
|
25 |
GU95100239-WASHER More informationQuantity required : 2 |
||||||
|
26 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
27 |
GU30751360 - CACHE More informationQuantity required : 1 |
||||||
|
28 |
GU98622310-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
29 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 1 |
||||||
|
30 |
Plaquette marque adhésive |
||||||
|
30 |
Plaquette autocollante |
