Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 4T E2 25kmh 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

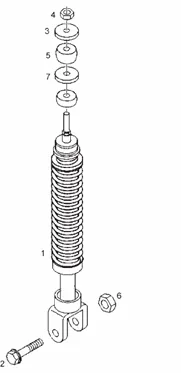

Suspensions - roues : 8 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1142/Boulevard_50_4T_E2_25kmh_2009_(EMEA)_8.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/4/8/img/68048.jpg)
1 |
REAR SHOCK ABSORBER OEM PIAGGIO 50 FLY 2006 > 2011-648094 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
2 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
3 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
4 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-021108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
5 |
BUFFER UPPER REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA SCOOTER 50 CC ET MAXI SCOOTER 125-250 CC-178150 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
7 |
WASHER PLATE (8X37X1, 5) OEM PIAGGIO COMMON A LA RANGE-267038 More informationQuantity required : 1 |
