Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 4T E2 25kmh 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

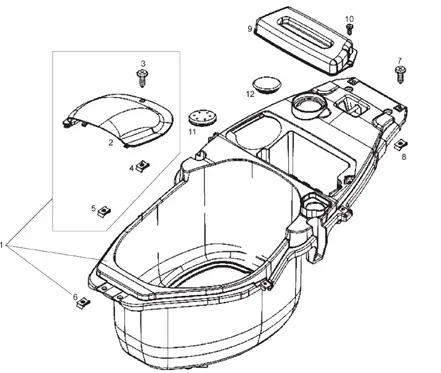

Châssis - parties plastiques - carrosseries : 7 COMPART.P-CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1142/Boulevard_50_4T_E2_25kmh_2009_(EMEA)_7.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/7/img/67667.jpg)
2 |
621976000C - ABATTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
|
5 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
|
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
10 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/1/img/67021.jpg)
11 |
CAP DE UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO FLY 50-125 2005 > 2011, LIBERTY 50-125 2006 > 2017-562897 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/2/img/66302.jpg)
12 |
CAP DE LOGEMENT OF HELMET OEM PIAGGIO COMMON A LA RANGE-298497 More informationQuantity required : 1 |
